Vehicle Info NeededMILODONPART NUMBER: 697-30520

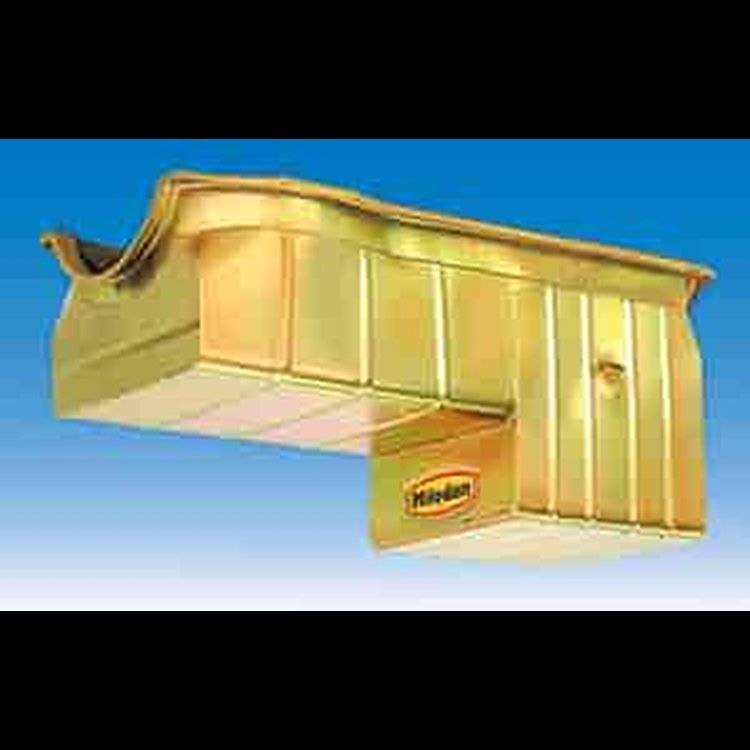

Off-Road Oil Pan Ford 351C & 400M Swap
$56995
1 left in stock
Ships Today
Lowest Price GuaranteeFord
- Off-Road Oil Pan
- Ford 351C & 400M Swap
- 2WD & 4WD
- Pickups & Broncos 78-Up
- 8 Quarts & Filter
- 10'' Deep Sump
Designed for 2 and 4 wheel drive, rear sump trucks including Bronco. The deep rear sump features horizontal oil control baffles that allow increased capacity and improved oil control. Features a factory style fitting to attach a dirt and water tight screw-in dipstick tube.
Use oil pump pickup 697-18435,
Oil pump shaft 697-22565,
Windage tray 697-32222,
Windage tray installation kit 697-81151,
Dipstick 697-22040,
Oil Pump 689-M84AHV.
Part TypeOil Pan
BrandMILODON
Package Height11.5
Package Width13.0
Package Length25.4
Weight16.75 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.1 in (104.14 mm)
Gaskets IncludedNo
Oil Pan Depth10 in (254 mm)
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number30520
Package Qty1
Package TypeEA
