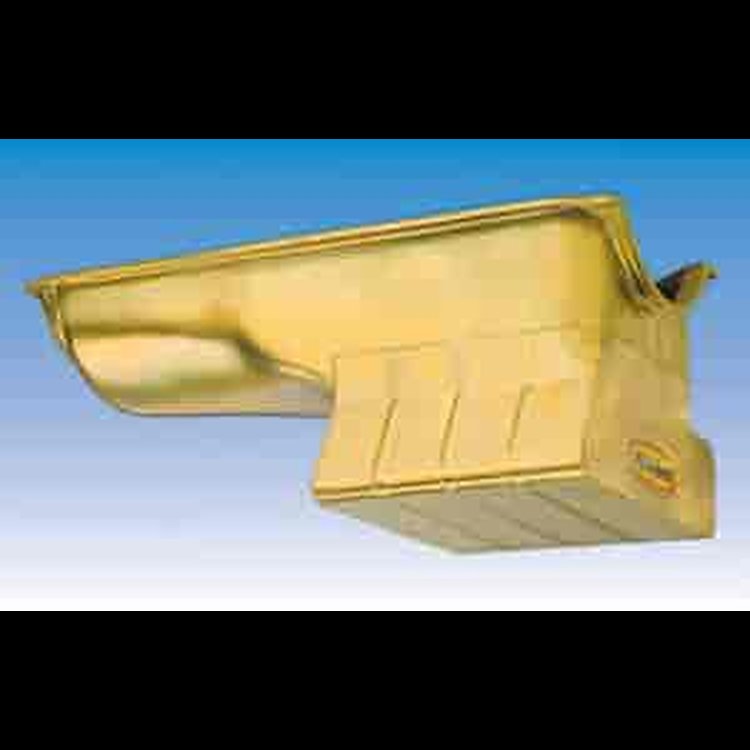

Ford Cleveland/Modified Oil Pan 351C/400M

Name: Ford Cleveland/Modified Oil Pan 351C/400M
Brand: MILODON
SKU: 697-30927
Price: 499.95 USD
Availability: InStock

^$499⁹⁵

Ships on 09/11/2026

Lowest Price Guarantee

Ford

351C/400M
Low Profile
8-Quart Capacity Plus Filter
9-1/2'' Sump Depth
Front Sump

These early chassis, pre 1974 front sump, low profile designs provide both increased oil capacity, as well as maximum available ground clearance. Increased oil capacity is an absolute requirement to handle the demands of higher RPM and increased horsepower. Suitable for heavy street and strip use. Oil control baffles 100% subdue any unwanted oil movement, which results in consistent oil pressure and increased horsepower output. Will fit all stock front sump chassis, all stock starters, all stock exhausts, and nearly all headers.
9.5' deep sump, 9.5' sump length, 12' sump width.
Use oil pump pickup 697-18355,
Oil pump shaft 697-22565,
Windage tray 697-32220,
Windage tray installation kit 697-81151.

Deep-Sump Oil Pans Maximize Engine Performance

Milodon Street/Strip Oil Pans are designed to provide maximum performance for your vehicle. These well-engineered oil pans release additional horsepower, increase engine life and oil control. Deep sumps provide ample oil supply and low profiles provide maximum ground clearance (clears stock chassis, steering, and most headers as listed). Street/Strip Oil Pans are a necessity where high-volume oil pumps and increased RPM ranges are used.

Street/Strip: Low-Profile
Low-profile "triangulated" sump design gives both adequate ground clearance and sufficient oil capacity for any high-performance use. This pan is equally suited for use on the street or strip. Oil control baffles 100% subdue oil movement and provide increased horsepower.

Street/Strip: Low-Profile Stroker
High-horsepower output design, front of the oil pan is deeper to allow the use of a full-length, competition-style tray (Tray is attached in the pan by quick-release fasteners to allow easy removal). The pan fits stock cross members without modification, as well as stock starters and oil filters.

Street/Strip: Street Performance
Appearing stock on the outside contains sufficient horizontal baffling to 100% control oil movement. Pan mounted windage tray provides increased power yet requires no mounting to the block. A complete low-cost performance package with a magnetic drain plug.

Part TypeOil Pan

Product LineMilodon Street/Strip Oil Pans

BrandMILODON

Package Height11.2

Package Width13.7

Package Length25.1

Weight12.87 PG

Part CategoryPerformance Parts

Oil Pan Capacity8 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes
