Vehicle Info NeededMILODONPART NUMBER: 697-30985

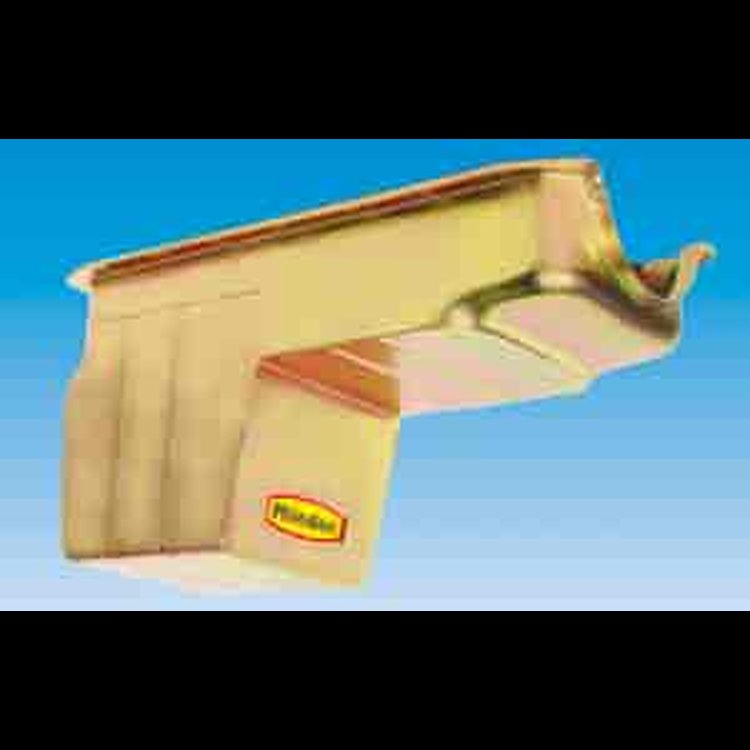

Off-Road Oil Pan Small Block Chrysler 360
$52995
Ships on 09/11/2026
Lowest Price GuaranteeChrysler
- Off-Road Oil Pan
- Small Block Chrysler 360
- 2WD & 4WD
- 8 Quarts & Filter
- 10-3/4'' Deep Sump
This pan is designed for street cruising to heavy off road use. Sump at the rear has additional control for power and increased capacity to longevity. Uses a Ford Style screw-in or Milodon CNC stainless steel dipstick. Fits 2 and 4 wheel drive vehicles and vans.
Uses Oil Pump Pickup Tube 697-18460
Windage Tray 697-32230
Oil Pan Gasket 697-40650
Tray Install Kit 697-81151
Dipstick 697-22040
Part TypeOil Pan
BrandMILODON
Package Height11.25
Package Width12.25
Package Length25.38
Weight13.45 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.125 in (104.775 mm)
Gaskets IncludedNo
Oil Pan Depth10.75 in (273.1 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number30985
Package Qty1
Package TypeEA
