Vehicle Info NeededMILODONPART NUMBER: 697-31178

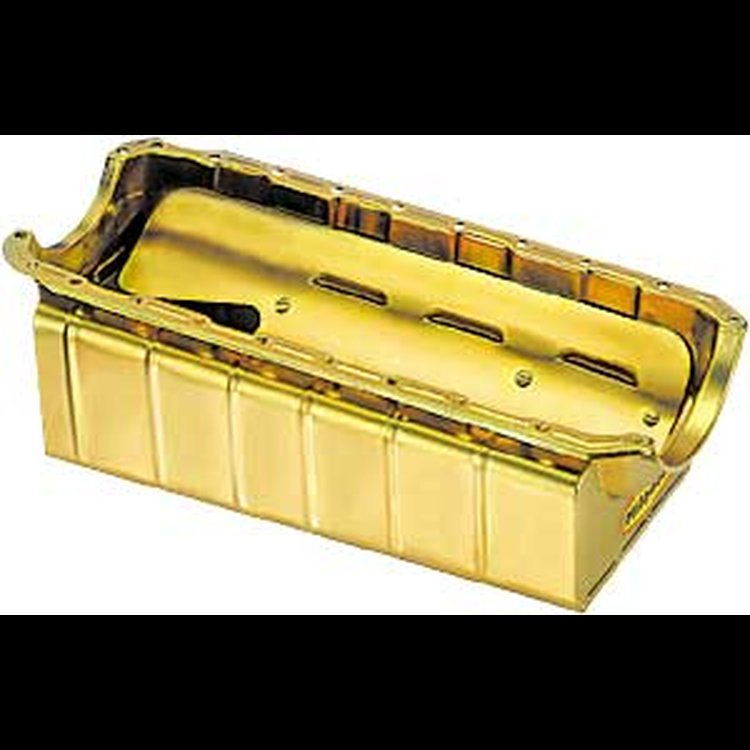

Drag Racing Oil Pan Big Block Chevy Mark IV
$76995
Ships on Sep 17, 2026
Lowest Price GuaranteeBig Block Chevy
- Drag Racing Oil Pan
- Big Block Chevy Mark IV
- Full Kick-Out With Dipstick Provision
- Pan Capacity: 8 Quarts Plus Filter
- Front Depth: 6-1/2"
- Rear Depth: 7-3/4"
This lightweight steel pan with a starter notch for a large diameter flywheel starter or full length kick-out for maximum horsepower that requires a mini-style starter. Features two trap door assemblies and a full length semi-circular windage tray. With most aluminum rods, pan will fit up to 4-1/2" stroke without modification.
NOTE: For very big stroker engines or engines that see 7-8 second passes with nitrous or blown use, the Extreme Duty pickup 697-18202 should be used.
Part TypeOil Pan
BrandMILODON
Package Height8.4
Package Width12.4
Package Length25.1
Weight17.1 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31178
Package Qty1
Package TypeEA
