Vehicle Info NeededMILODONPART NUMBER: 697-31190

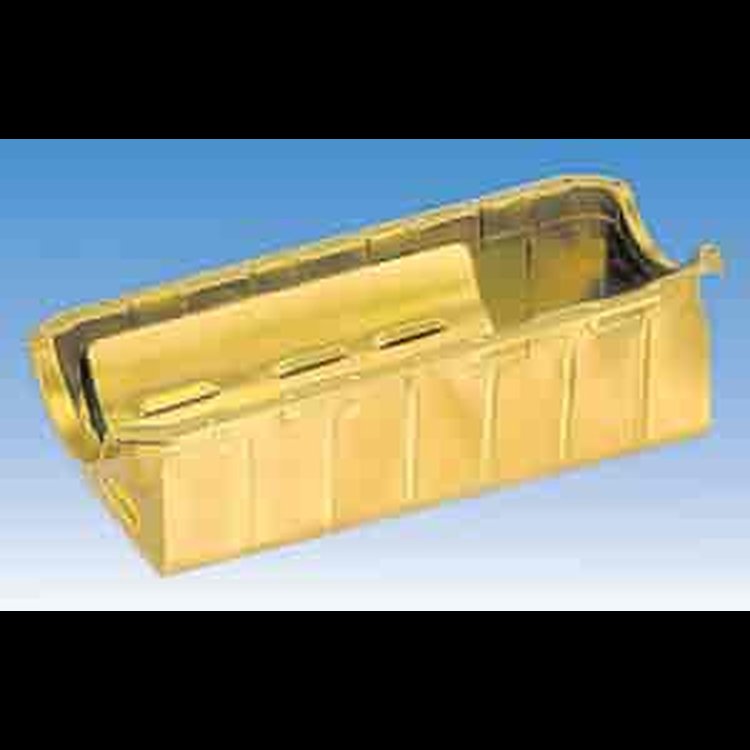

Drag Racing Oil Pan Big Block Chevy Mark IV (1965-90)
$65995
Ships on 11/05/2026
Lowest Price GuaranteeBig Block Chevy
- Drag Racing Oil Pan
- Big Block Chevy Mark IV (1965-90)
- Without Dipstick Provision
- Pan Capacity: 8 Quarts Plus Filter
- Front Depth: 6-1/2"
- Rear Depth: 7-3/4"
The most used oil pan in the Super Comp, Super Gas and bracket classes today! Designed for altereds, dragsters and full-bodied tube chassis cars. Quick release, full length, louvered windage tray, baffles and trap doors 100% control oil movement to give consistent oil pressure and increased horsepower output. With most aluminum rods, this pan will fit up to a 4-1/2" stroke without modification.
Milodon's Drag Racing Oil Pans are designed to provide maximum performance and lubrication for your engine during adverse conditions like rapid acceleration. Each pan features a sump and baffling that is engineered to give you more horsepower and oil control. Milodon's distinctive gold irridated finish ensure long lasting durability and reliabilty.
Features:
- Provides maximum performance and lubrication
- Ample oil supply under rapid acceleration
- Sump and baffling for full oil control
Show More
- Gold irridated finish
- Includes magnetic drain plug
JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.
Part TypeOil Pan
Product LineMilodon Drag Racing Oil Pans
BrandMILODON
Package Height8.6
Package Width12.2
Package Length25.3
Weight14.8 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth7.75 in (196.9 mm)
Rear Main Seal Style2-piece
Sump LocationFull
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number31190
Package Qty1
Package TypeEA
