Vehicle Info NeededMILODONPART NUMBER: 697-31186

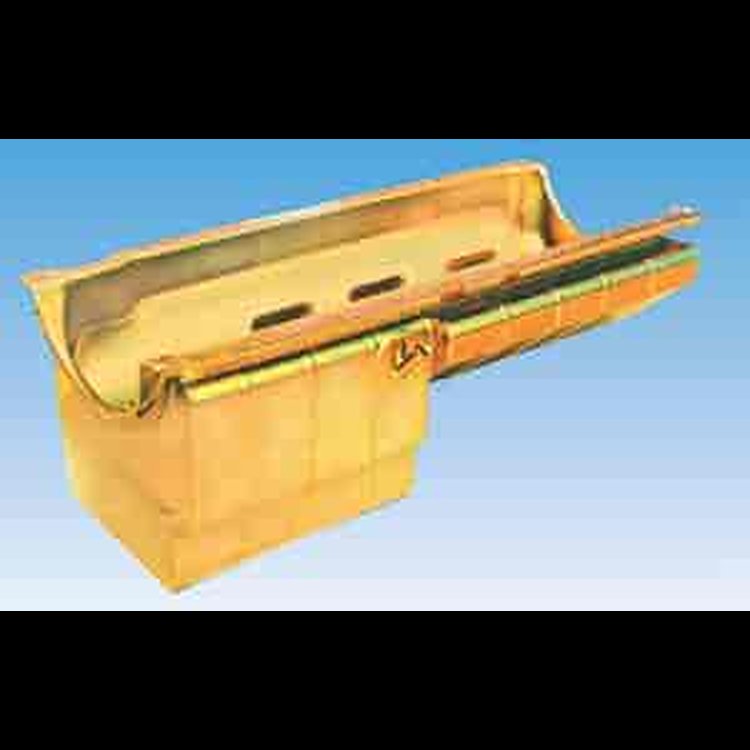

Drag Racing Oil Pan Big Block Chevy Mark V & Gen VI
$98995
Ships on Sep 08, 2026
Lowest Price GuaranteeBig Block Chevy
- Drag Racing Oil Pan
- Big Block Chevy Mark V & Gen VI
- Full Kick-Out With Dipstick Provision
- Pan Capacity: 8 Quarts Plus Filter
- Front Depth: 4-3/4"
- Rear Depth: 8-1/2"
Used in stock framed cars where maximum power output is needed. Designed to fit into cross membered cars such as Camaros and Chevelles with only a reasonable amount of cross member modification. This horsepower style pan incorporates lightweight steel construction with a full length kick-out and full-length louvered tray assembly. Pan will accept a factory large diameter flywheel starter. With most aluminum rods, pan will fit up to a 4-1/2" stroke without modification.
NOTE: For very big stroker engines or engines that see 7-8 second passes with nitrous or blown use, the Extreme Duty pickup 697-18201 should be used.
Part TypeOil Pan
BrandMILODON
Package Height8.8
Package Width12.2
Package Length25.3
Weight15.48 PG
Part CategoryPerformance Parts
Oil Pan Capacity8 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth8.5 in (215.9 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationPassenger side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31186
Package Qty1
Package TypeEA
