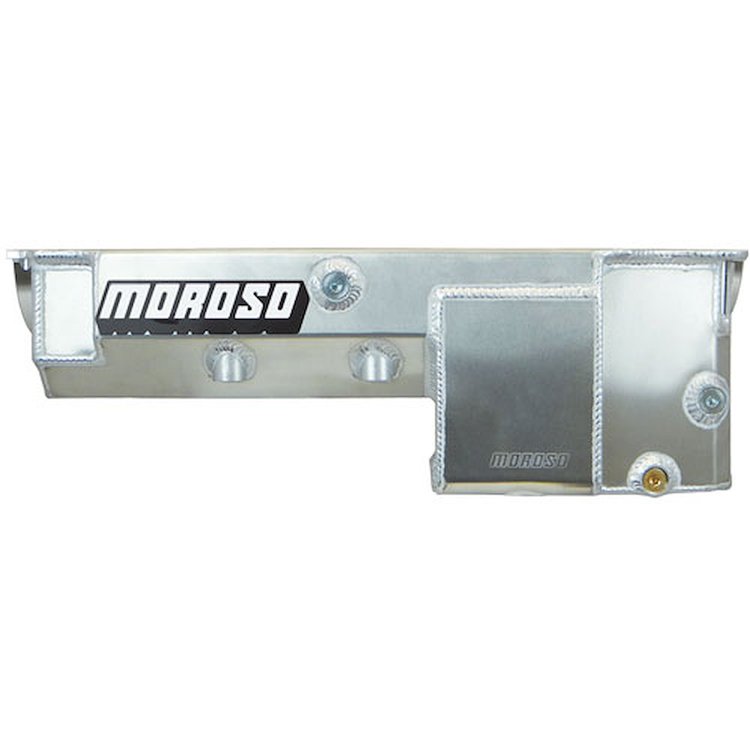

20485 Drag Race Oil Pan Comp Eliminator, Super Gas/Comp, and Bracket Cars

Name: 20485 Drag Race Oil Pan Comp Eliminator, Super Gas/Comp, and Bracket Cars
Brand: MOROSO
SKU: 710-20485
Price: 910.99 USD
Availability: InStock

^$910⁹⁹

3 left in stock

Ships Tomorrow

Lowest Price Guarantee

Drag Race Oil Pan

Comp Eliminator, Super Gas/Comp, and Bracket Cars

Big Block Chevy Mark IV (Except Gen V/Gen VI)

Wet Sump

Capacity: 6-Quart w/Standard and 7-Quart w/Hi-Volume Pump

8" Depth

Aluminum

Notes:

Accepts strokes up to 4.750 in. w/ aluminum rods
Installation may require modifications to cross-member
Features Divided Tray

Recommended Pickups:

710-24440 Fits Mellings 689-M77 or 689-M77HV and Moroso Race Pumps 710-22150, 710-22160, 710-22162.
710-24441* Fits Mellings 689-M77 or 689-M77HV and Moroso Race Pumps 710-22150, 710-22160, 710-22162. *Moroso High Volume Package/Front Style Offset Pickup 710-22186.

Oil Pans to Maximize Your Engine's Performance

Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan

Product LineMoroso Drag Race Oil Pans

BrandMOROSO

Package Height9.75

Package Width17.5

Package Length25.75

Weight17.89 PG

Part CategoryPerformance Parts

Maximum Stroke With Oe Rod4.75 in (120.65 mm)

Oil Pan Depth8 in (203.2 mm)

Part FitmentSemi Universal
