Vehicle Info NeededMILODONPART NUMBER: 697-31504

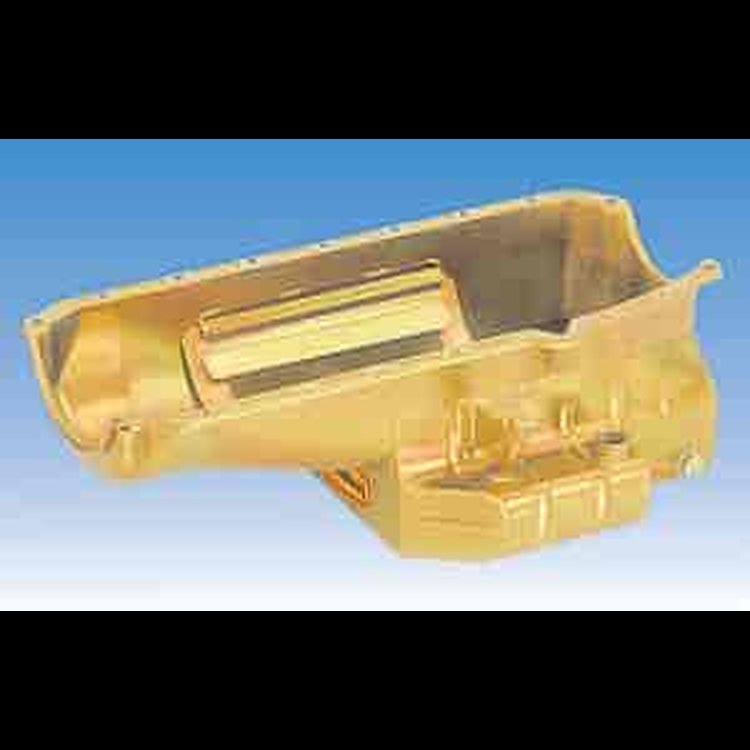

Oil Pan - Late Model/Sprint Small Block Chevy 55-79
$51995
Ships on 09/30/2026
Lowest Price GuaranteeSmall Block Chevy
- Milodon Oil Pan - Late Model/Sprint
- Small Block Chevy 55-79
- Left Hand Dip Stick
- 7 Quarts Plus Filter
- 7" Sump Depth
- Rear Main Seal Style: 2-piece
- Sump Style: Dry
- Oil Pan Capacity: 7 quarts
- Oil Pan Depth (in): 7.000 in.
- Oil Pan Material: Steel
- Oil Pan Finish: Gold iridited
- Sump Location: Driver side
- Baffled: Yes
- Kicked Out: Yes
- Kickout Position: Driver side
- Stroker Clearanced: YesDipstick Provision: Yes
- Dipstick Location: Driver side
- Windage Tray Included: Yes
- Pickup Included: No
- Crank Scraper Included: No
- Drain Plug Thread Size: 1/2-20 in.
- Gaskets Included: No
- Hardware Included: No
- Quantity: Sold individually.
Milodon has gone to great lengths to build a superior circle track oil pan. They use extensive baffling for proper oil control and carry maximum oil capacity with maximum ground clearance. Designed for left hand turn only applications. Made in the U.S.A.
These kits, put together by JEGS Professionals, include Milodon Circle Track Oil Pan, Milodon Oil Pump Pickup Tube, Milodon Oil Pan Baffle, JEGS Oil Pan Gasket, JEGS High Strength Oil Pump Shaft, JEGS RTV Silicone Gasket Maker, JEGS Oil Pan Bolt Set and JEGS Standard Duty Oil PumpPart TypeOil Pan
Product LineMilodon Circle Track Oil Pan
BrandMILODON
Package Height8.5
Package Width14.0
Package Length25.5
Weight14.45 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedNo
Oil Pan Depth7 in (177.8 mm)
Rear Main Seal Style2-piece
Sump LocationDriver side
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number31504
Package Qty1
Package TypeEA
