Vehicle Info NeededMILODONPART NUMBER: 697-31515

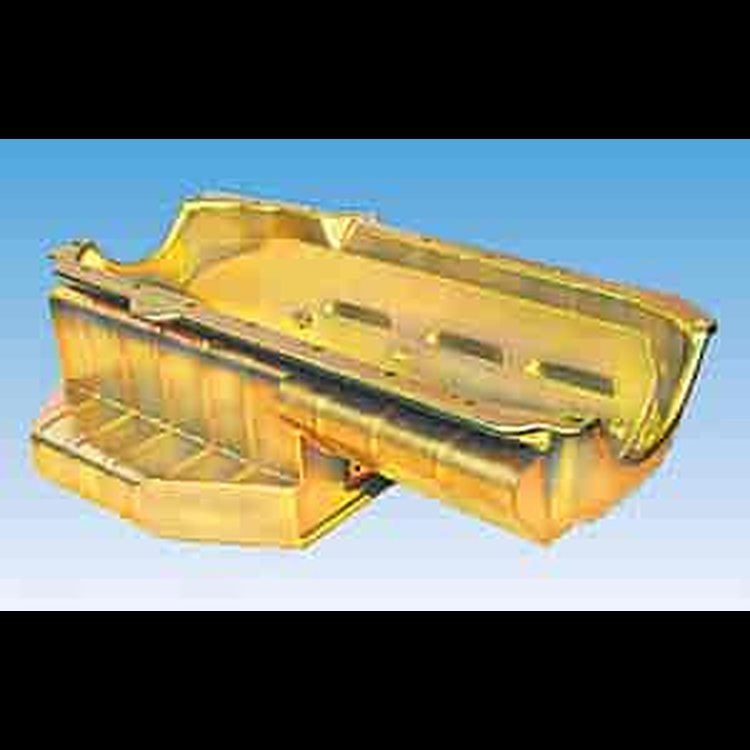

Oil Pan - Late Model/Sprint/Pro Competition 1955-1979 Small Block Chevy
$67995
Ships Tomorrow
Lowest Price GuaranteeSmall Block Chevy
- Milodon Oil Pan - Late Model/Sprint/Pro Competition
- 1955-1979 Small Block Chevy
- Left Hand Dipstick
- 7 Quarts Plus Filter
- 7" Sump Depth
This high output pan design has a full kickout and a full length tray. It is designed for cars that don't use a stock crossmember location. The highly effective tray door system and the quick release windage tray assembly that is fastened into the pan provide 100% oil control at all times. This results in consistent oil pressure both in and out of the corners, as well as increases power output. A temperature sender bung is also welded into the pan. Includes a sealed, dirt-proof screw-in dipstick.Pan will fit a 4" stroke crank and Carillo or Eagle style rod.
Milodon has gone to great lengths to build a superior circle track oil pan. They use extensive baffling for proper oil control and carry maximum oil capacity with maximum ground clearance. Designed for left hand turn only applications. Made in the U.S.A.
These kits, put together by JEGS Professionals, include Milodon Circle Track Oil Pan, Milodon Oil Pump Pickup Tube, Milodon Oil Pan Baffle, JEGS Oil Pan Gasket, JEGS High Strength Oil Pump Shaft, JEGS RTV Silicone Gasket Maker, JEGS Oil Pan Bolt Set and JEGS Standard Duty Oil PumpPart TypeOil Pan
Product LineMilodon Circle Track Oil Pan
BrandMILODON
Package Height8.6
Package Width15.4
Package Length25.3
Weight16.49 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth7 in (177.8 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationDriver
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31515
Package Qty1
Package TypeEA
