Vehicle Info NeededMILODONPART NUMBER: 697-31554

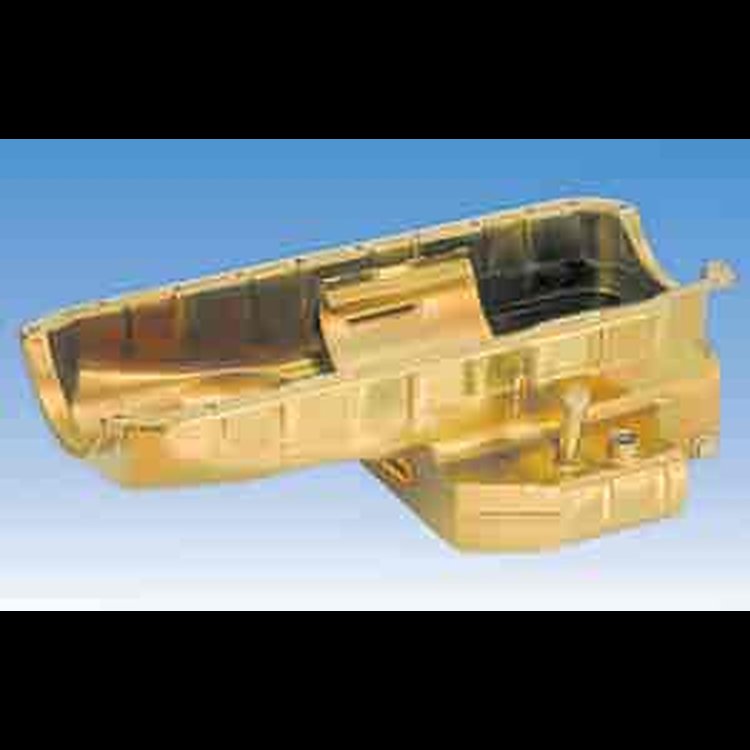

Oil Pan - Modified Big Block Chevy Mark IV Engines
$77995
Ships on 09/09/2026
Lowest Price GuaranteeBig Block Chevy
- Milodon Oil Pan - Modified
- Big Block Chevy Mark IV Engines
- 9 Quarts Plus Filter
- 7-1/4" Depth
- Will Fit Up TO 4-1/2" Stroke
Designed for Dirt or Asphalt Modifieds were ground clearance is critical. The highly effective trap door system and the quick release windage tray assembly that fastens into the pan provides 100% oil control. This results in consistent oil pressure both going in and out of the corners, as well as increases power output. Uses a sealed, dirt-tight screw-in dipstick and has 1/2" pipe fitting for an oil temp sender. This pan will fit up to a 4-1/2" stroke with most aluminum rods.
Milodon has gone to great lengths to build a superior circle track oil pan. They use extensive baffling for proper oil control and carry maximum oil capacity with maximum ground clearance. Designed for left hand turn only applications. Made in the U.S.A.
These kits, put together by JEGS Professionals, include Milodon Circle Track Oil Pan, Milodon Oil Pump Pickup Tube, Milodon Oil Pan Baffle, JEGS Oil Pan Gasket, JEGS High Strength Oil Pump Shaft, JEGS RTV Silicone Gasket Maker, JEGS Oil Pan Bolt Set and JEGS Standard Duty Oil PumpProduct LineMilodon Circle Track Oil Pan
BrandMILODON
Package Height8.8
Package Width17.2
Package Length25.5
Weight16.1 PG
Part CategoryPerformance Parts
Vendor Part Number31554
Package Qty1
Package TypeEA
