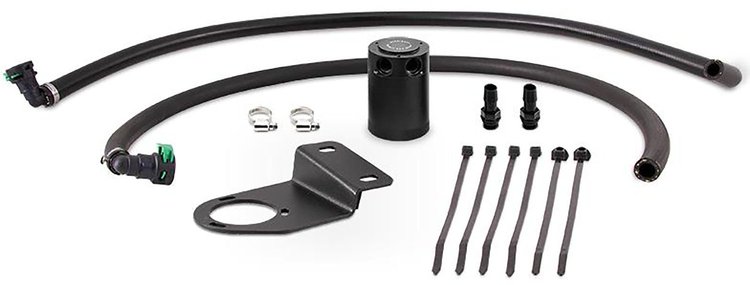

Breakdown of Included Items

This direct-fit Mishimoto 2-port baffled oil catch can kit is designed and engineered to reduce carbon buildup, which is common with direct-injection engines. The 3 oz. can taps into the PCV system of the 2.3L EcoBoost engine for the best protection and blow-by collection, as it yields the most accumulation through both normal and aggressive driving. An internal air diverter slows down incoming air for more effective air-oil separation, along with a 50 micron-bronze filter and an aluminum baffle to keep oil from being sucked back into the system. The rubber lines coming from the can include Ford’s factory quick-disconnect fittings for easy installation. The thick steel mounting bracket securely mounts to the strut tower and allows for easy servicing of the can. Absolutely no other modifications are required for installation and the Mishimoto Lifetime Warranty is included with every kit.

Features:

• Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter.
• Installs in under 30 minutes.

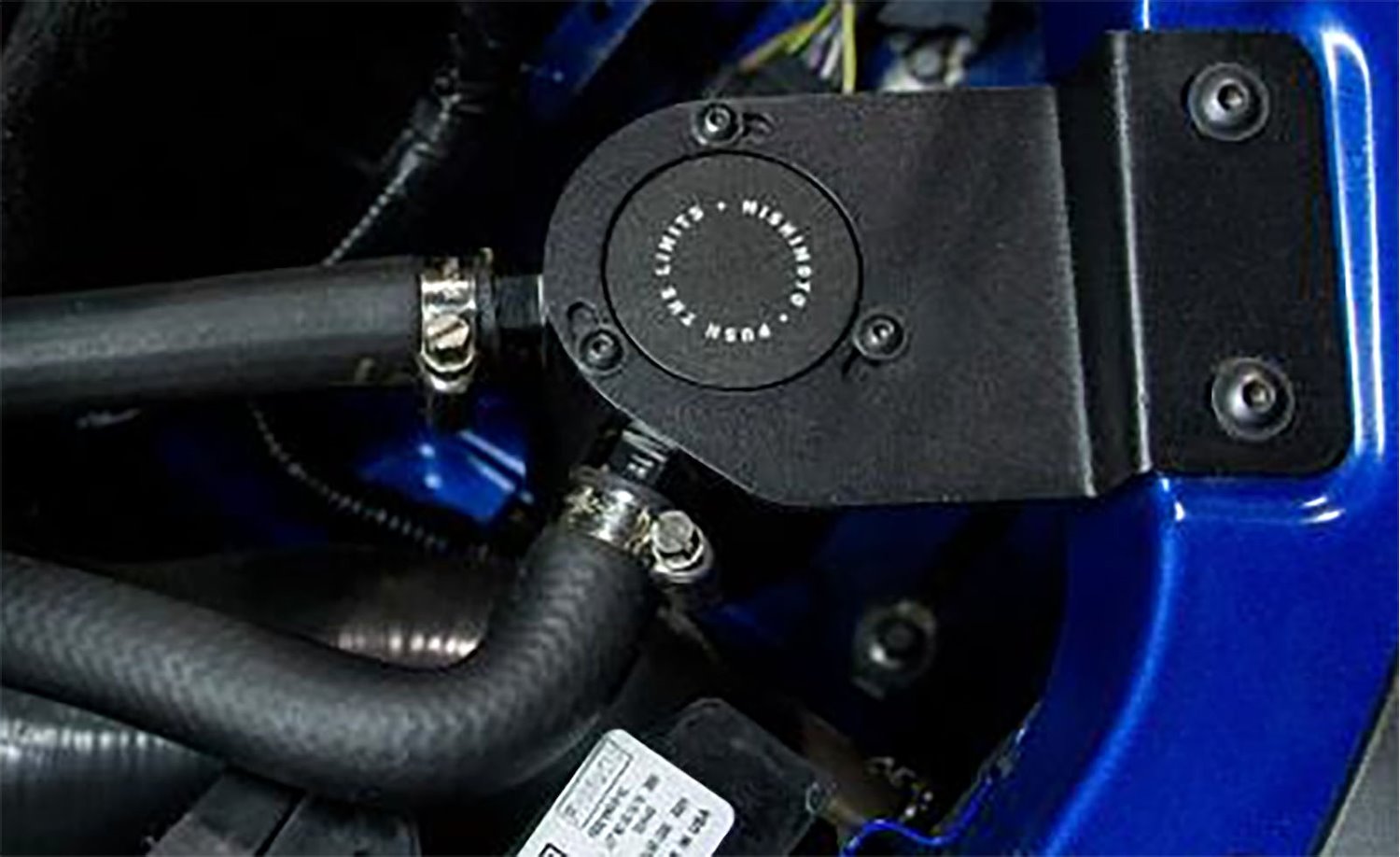

• Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits.
• Catch can has a 3 oz. capacity for longer servicing intervals
• Silicone hoses include pre–attached, stock-style quick-disconnect fittings for a true plug-and-play installation
• Defends intake system and essential components from oil blow-by
• Helps reduce potential of detonation
• Billet 6061 aluminum sealed can is fully serviceable
• Internal air diverter increases air turbulence to improve oil separation
• M16 x 1.500 Inlet/Outlet
• 3/8 NPT Drain Plug

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
