Turbo Downpipe 2015-Up Ford Mustang 2.3L EcoBoost

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

2015-Up Ford Mustang 2.3L EcoBoost
With Catalytic Converter
MFG p/n MMDP-MUS4-15CAT

Installation Note: This product fits both stock and automatic transmissions, there are no additional parts needed for automatic transmission fitment. This downpipe cannot be used with the stock ECU programming. The customer must retune the vehicle's ECU after installing the downpipe. Power gains will vary depending on the type of ECU tune that is applied to the vehicle, and other supporting modifications that are installed.

The Mishimoto downpipe is for track and off-road use only. The customer must have a professional engine tune/calibration after installing the downpipe.

The catalytic converter is manufactured using 304 grade automotive stainless steel. This particular grade of stainless has the tendency to form a protective layer of surface rust in wet/humid/snowy climates or when exposed to salted roads. This layer is superficial and will not penetrate the metal itself. It can be removed using soap and water and a steel Brillo or S.O.S pad. In the rare event that 304 stainless steel pipes become rusted through, the Mishimoto Lifetime Warranty will cover replacement.

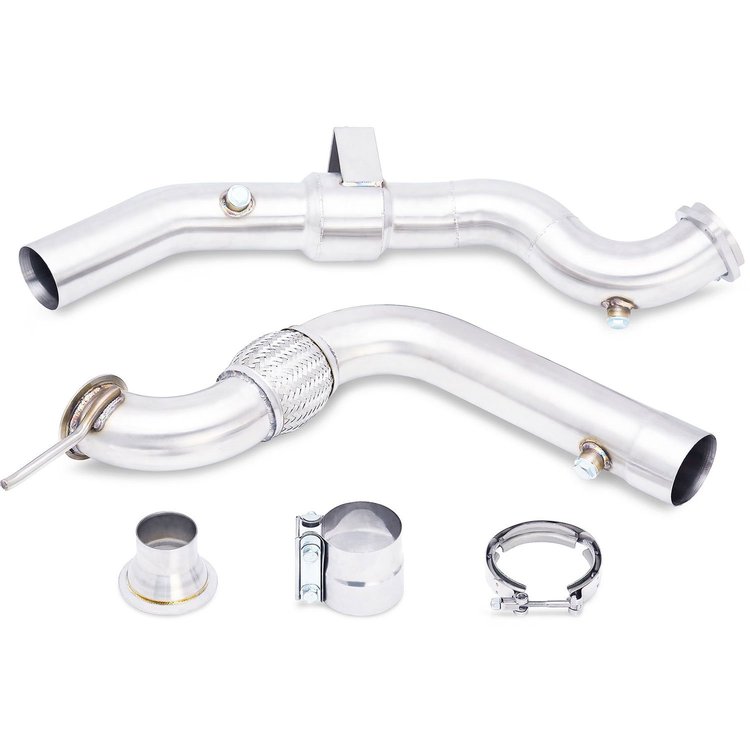

Kit Includes:
(1) Stainless Steel, 2-piece downpipe with floating 2-bolt flange, slip joint connector, and V-band flange
(1) High-Flow Catalytic Converter

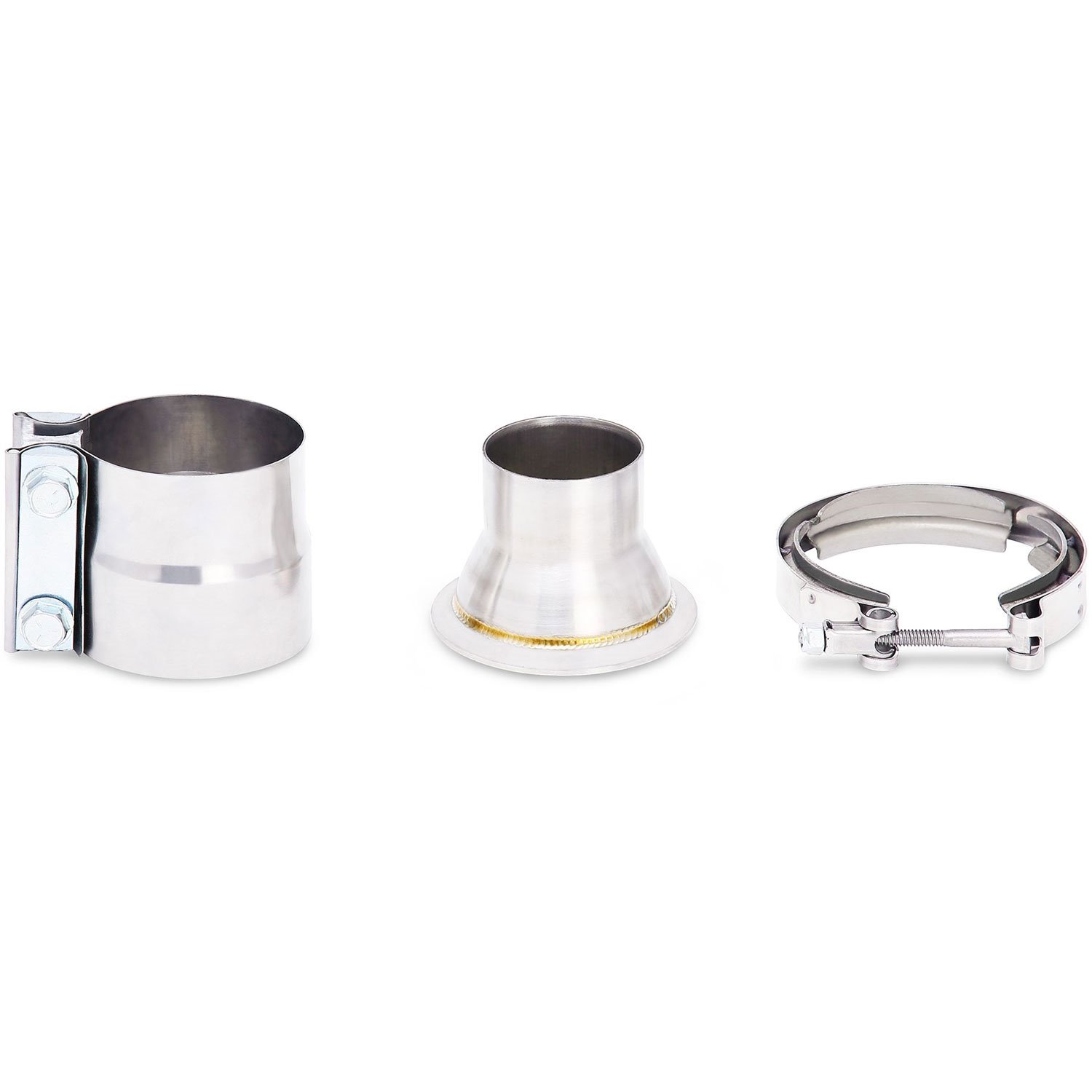

(1) 3.0" Slip Joint Clamp
(1) 3.0" V-Band Clamp
(1) 3.0" to 2.25" exhaust adapter (for use with stock exhaust or most aftermarket cat-back exhaust with a 2.25" mid-pipe)
Mishimoto Lifetime Warranty

TECH SPECS:
Pipe Material: 304 Stainless Steel
Flange Material: 304 Stainless Steel
Diameter: 3.0" from Turbo to V-band; 3.0" tapering to 2.25" and the end of the exhaust adapter
Catalytic Converter Outer Material: 304 Stainless Steel
Catalytic Converter Interior Material: 200 Cell Spun Metallic Core
Applications: 2015+ Ford Mustang EcoBoost, Manual and Automatic Transmissions
Chassis Codes: S-550
Engine Codes: 2.3L EcoBoost

Emissions Note:

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Mishimoto continues to expand on their line of performance exhaust system components! After months of development and testing, Mishimoto has released the stainless steel downpipe for the Ford Mustang EcoBoost! This EcoBoost Mustang downpipe was designed with maximum exhaust flow in mind, using 3" mandrel-bent stainless steel tubing. This Mustang EcoBoost downpipe will easily outflow the stock restrictive piece, and allow your EcoBoost Mustang to make maximum power and torque! With this Mustang EcoBoost downpipe installed on Mishimoto's EBM Mustang and the ECU re-flashed with a more aggressive tune, the engine was able to make an additional 65 horsepower and 108 lbs/ft over stock at the rear wheels with their catted downpipe installed. With the Mishimoto catless downpipe installed, they produced additional gains of 9.8 horsepower and 8.3 lbs/ft over the catted model, making this a great option for those seeking maximum power output.

The Mishimoto Mustang EcoBoost downpipe was also designed to be easy to install, as well as adaptable to many exhaust configurations. They know there are many choices out there for cat-back exhausts, and the included 3.0"-2.25" adapter allows easy mating to the stock Mustang EcoBoost exhaust or most aftermarket cat-back exhausts with the stock-sized 2.25" mid-pipe. The adapter can also be omitted, so the downpipe has a 3.0" V-band outlet to mate up to a custom exhaust, or the upcoming Mishimoto Mustang EcoBoost Cat-Back Exhaust to make a full 3" downpipe / mid-pipe combination.

The two-piece EcoBoost Mustang downpipe design allows for an easier installation without wrestling a large bulky pipe into place. The Mustang EcoBoost downpipe comes with all of the necessary clamps and flanges you'll need for installation, and mates perfectly to your stock turbo gasket, making the need to purchase additional gaskets or hardware unnecessary! Like all of their EcoBoost Mustang parts, this downpipe comes with the Mishimoto Lifetime Warranty!

Features:

Direct fit for the 2015+ Ford Mustang EcoBoost
Extremely aggressive turbo and exhaust tone under acceleration and boost
304 stainless steel 2-piece design allows for uninterrupted exhaust flow and an easy installation
3" exhaust diameter for maximum flow
Fits with both manual and automatic transmissions
Includes stainless steel 2-bolt mounting flange to the turbo
Additional wideband O2 sensor bung for aftermarket wideband sensors
Mates with the stock cat-back exhaust or any aftermarket exhaust with a 2.25" mid-pipe
Optional high flow catalytic converter
