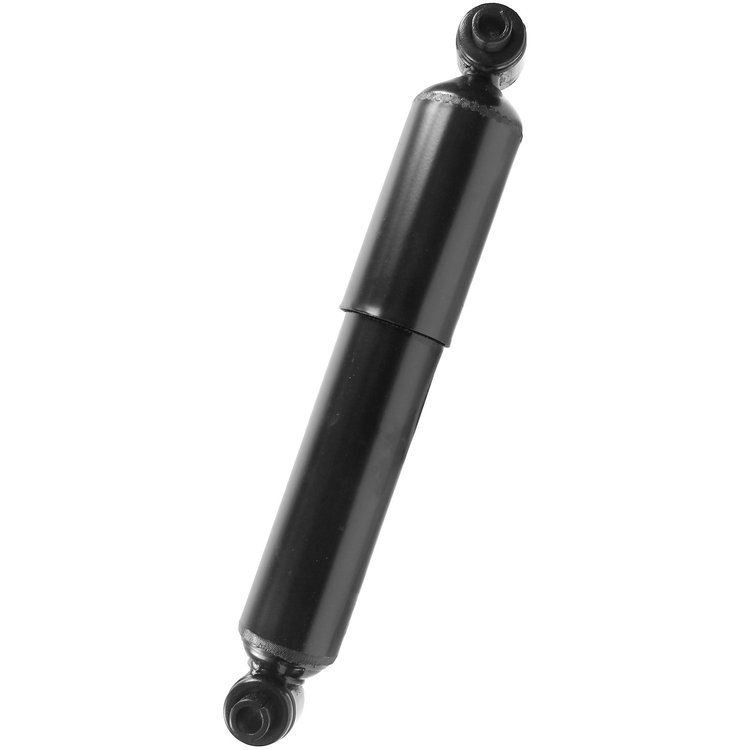

Magnum Cab Shock Absorber

Name: Magnum Cab Shock Absorber
Brand: MONROE
SKU: 100-66201
Price: 56.99 USD
Availability: InStock

^$56⁹⁹

Ships on Sep 14, 2026

Lowest Price Guarantee

Front

2020-2019 Peterbilt 348 Cab, 2016-2010 Peterbilt 384 Cab, 2013-2010 Peterbilt 384 Front, 2016-2006 Peterbilt 386 Cab, 2020-2013 Peterbilt 579 Cab, 2015-2011 Peterbilt 587 Cab, 2013-2011 Peterbilt 587 Front, 2019-2008 Kenworth T660 Cab
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration
Loop welding technique: Resistance weld with additional 360-degree weld provide up to 12,100 lbs. (5,488 kg) tensile strength for maximum durability - when required
2-inch (50.8 mm) reserve tube: More fluid for more consistent performance - on most applications
1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
.05-inch pressure tube withstanding pressure of 9KPSI - On most applications
10-stage valving: Reacts to wide range of driving conditions - on most applications

Cab-to-Frame Isolation Shocks

Monroe Magnum Cab Shock Absorbers provide a smooth transition for cab suspension setups needing a more comfortable ride quality from the vehicle to the frame. These nitrogen gas-charged shocks utilize a patented groove tube technology and various stage valves to adapt to different driving conditions. A hydraulic lockout prevents overextension, and heavy-duty bearings and bushings ensure lasting durability.

Part TypeShock Absorber

Product LineMonroe Magnum Cab Shock Absorbers

BrandMONROE

Package Height3.0

Package Width3.0

Package Length4.0

Weight4.1 PG

Part CategoryReplacement Parts

Vendor Part NumberTS66201

Package Qty1

Package TypeEA
