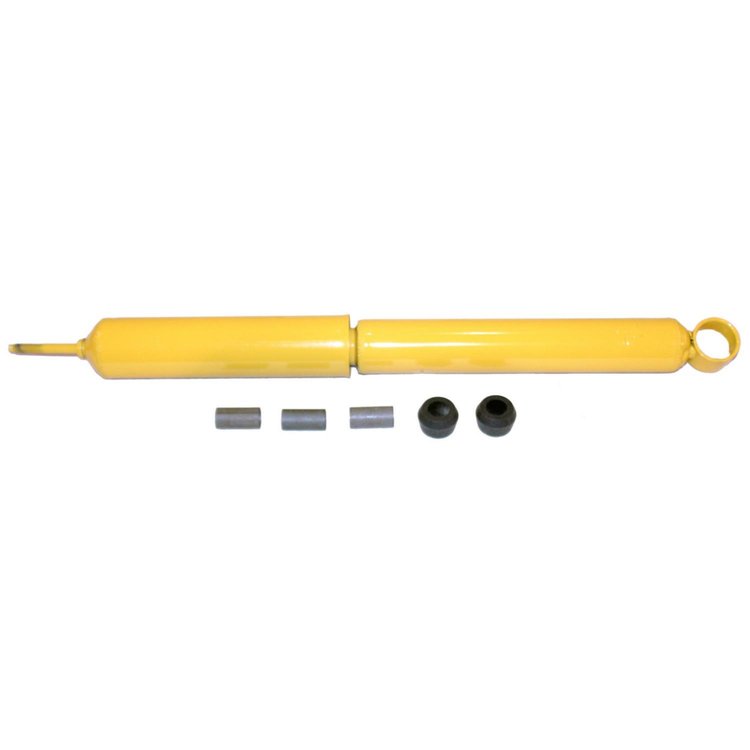

Magnum Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Front

1995-1992 Chevrolet W4 - Tilt Cab - 1 1/2 Ton Front, 1995-1992 Chevrolet W4500 Tiltmaster Front, 1995-1986 Isuzu NPR Front, 1995-1985 Isuzu NPR Tilt Cab Front, 1988-1986 Mitsubishi Fuso FK Front, 1995-1992 GMC W4 - Tilt Cab Front
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly - on most applications
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability - on most applications
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld provide up to 13,100 lbs. (6,395 kg) tensile strength for maximum durability - when required
2-inch (50.8 mm) or 2-1/4-inch (57.2 mm) reserve tube: More fluid for more consistent performance - when required
1-3/8-inch (35 mm) bore: Larger bore than most shocks to provide more efficient and consistent control - on most applications
.05-inch Pressure tube withstanding pressure of 9KPSI
10-stage valving: Reacts to wide range of driving conditions - on most applications

Extra Strength Shocks

Monroe Magnum Shock Absorbers provide additional stability and ride control for heavy-duty applications. These shocks feature strengthened internal components, PTFE-coated bearings, and are nitrogen gas-charged improved handling and responsiveness.

Part TypeShock Absorber

Product LineMonroe Magnum Shock Absorbers

BrandMONROE

Package Height3.0

Package Width3.0

Package Length4.0

Weight5.7 PG

Part CategoryReplacement Parts

Vendor Part NumberTS66717

Package Qty1

Package TypeEA
