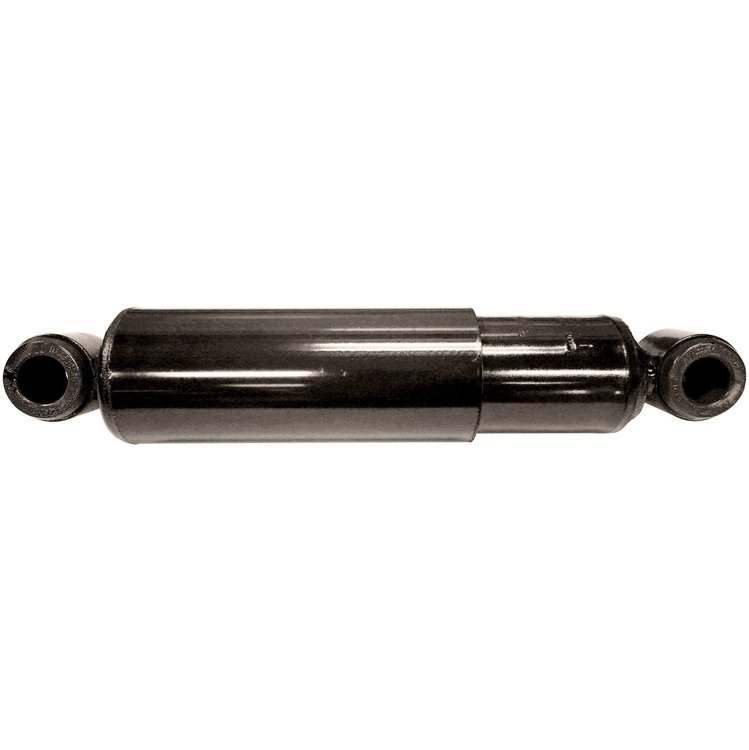

Magnum Shock Absorber

Name: Magnum Shock Absorber
Brand: MONROE
SKU: 100-74405
Price: 90.99 USD
Availability: InStock

^$90⁹⁹

Ships on 09/28/2026

Lowest Price Guarantee

Magnum Shock Absorber

1977-1968 International Fleetstar 2010A Rear, 1975-1972 International Fleetstar 2050A Rear, 1977-1973 International Fleetstar 2070A Rear, 1972 International Fleetstar 2110A Rear, 1976-1968 International Fleetstar F-1910A Rear

Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld to provide up to 15,000 lbs. (6,804 kg) tensile strength for maximum durability - when required
1-3/4-inch (44.6 mm) Bore: Larger bore gives accessibility to finer tune the valving by allowing more hydraulic fluid to dissipate heat for better vehicle control
2-3/4-inch (69.85 mm) Reserve Tube: More fluid for more consistent performance - when required
.05-inch Pressure tube withstanding pressure of 9KPSI
All weather fluid: Contains special modifiers to reduce frictions and ensure smooth rod reaction
10-stage valving: Reacts to wide range of driving conditions - on most applications

Extra Strength Shocks

Monroe Magnum Shock Absorbers provide additional stability and ride control for heavy-duty applications. These shocks feature strengthened internal components, PTFE-coated bearings, and are nitrogen gas-charged improved handling and responsiveness.

Part TypeShock Absorber

Product LineMonroe Magnum Shock Absorbers

BrandMONROE

Package Height4.0

Package Width4.0

Package Length4.0

Weight9.1 PG

Part CategoryReplacement Parts

Vendor Part NumberTS74405

Package Qty1

Package TypeEA
