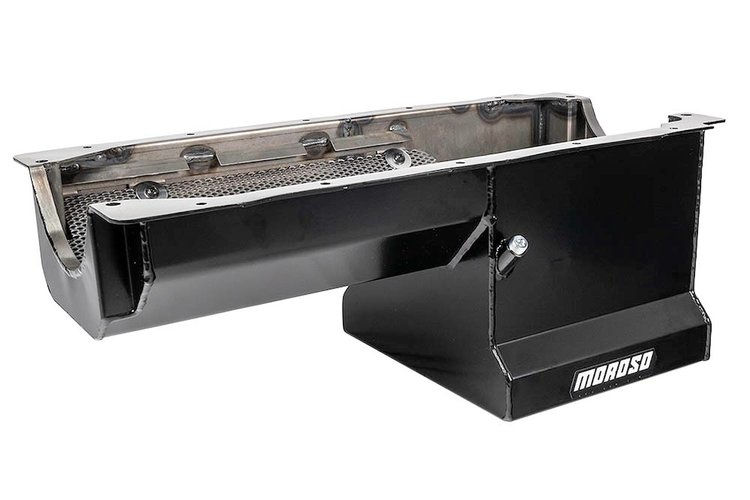

20193 Street/Strip Oil Pan Fits Most Chassis
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20193

20193 Street/Strip Oil Pan Fits Most Chassis

$54599
ShippingShips on 10/19/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street/Strip Oil Pan
  • Fits Most Chassis (may require cross-member modification)
  • Dart and Rocket Style Small Block Chevy
  • Kicked-Out Sump
  • Wet Sump 7-quart capacity
  • 8.25" Depth
  • Black Finish
  • Includes Screen Windage tray

    • Fully fabricated construction
    • Kicked-out sump provides additional ground clearance
    • Uni-directional Screen Windage Tray
    • Trap-door baffling for improved oil control
    • Reduced oil temperature
    • Universal Dipstick Provision
    • Compatible with most starter/flywheel combinations

    Note: Oil pan capacities do not include oil filter capacity

    Recommended Pickups:

    • 710-24171 -- Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
    • 710-24351 -- Fits Moroso Small Block Chevy HV Race Pump No 710-22111 and Stock Style Hi-Volume Pumps

      • High-Performance Oil Pans

      Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.

    Part TypeOil Pan
    Product LineMoroso Street/Strip Oil Pans
    BrandMOROSO
    Package Height11.5
    Package Width12.0
    Package Length26.5
    Weight17.45 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity7 quarts
    Hardware IncludedNo
    Dipstick ProvisionYes
    BaffledYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    QuantitySold individually
    Oil Pan FinishBlack
    Kickout PositionDriver and passenger side
    Oil Pan MaterialSteel
    Gaskets IncludedNo
    Oil Pan Depth8.25 in (209.6 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedYes
    Windage Tray IncludedYes
    Dipstick LocationDriver
    Part FitmentDirect Fit
    Kicked OutYes
    Stroker ClearancedNo
    Vendor Part Number20193
    Package Qty1
    Package TypeEA
