Street/Strip Oil Pan Kit, Pre-1980 Small Block Chevy
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20230K

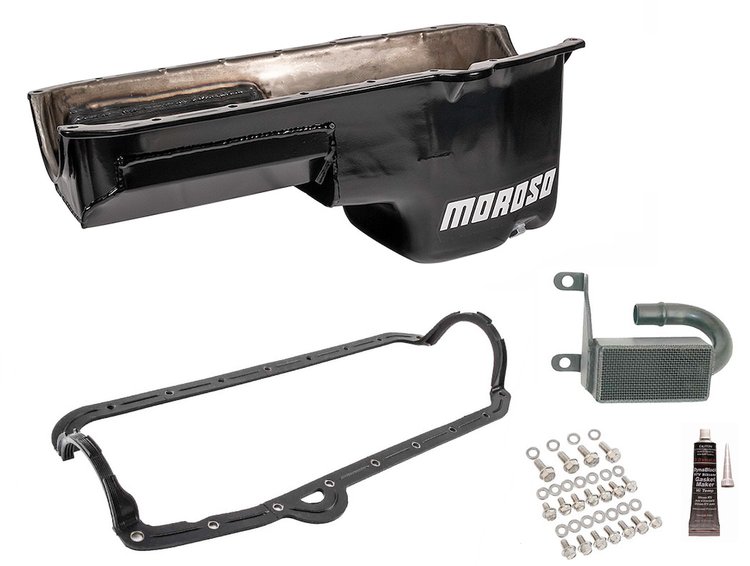

Street/Strip Oil Pan Kit, Pre-1980 Small Block Chevy

$53985
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Small Block Chevy
Street/Strip Oil Pan Kit
  • Pre-1980 Small Block Chevy
  • Includes:
    • Street/Strip Steel Oil Pan
    • One-Piece Oil Pan Gasket
    • Stainless Steel Oil Pan Bolt Set
    • Standard-Volume Oil Pump Pickup
    • Black RTV Silicone Gasket Maker

      Kit Includes:

      • (1) Moroso Street/Strip Steel Oil Pan, Clear Zinc Finish - 710-20230
      • (1) JEGS One-Piece Rubber Oil Pan Gasket - 555-210095
      • (1) Moroso Standard-Volume Oil Pump Pickup - 710-24170
      • (1) JEGS Stainless Steel Oil Pan Bolt Set - 555-83305
      • (1) JEGS Black Hi-Temp RTV Silicone Gasket Maker - 555-28035

      • High-Performance Oil Pans

      Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.

    Part TypeOil Pan
    Product LineMoroso Street/Strip Oil Pans
    BrandMOROSO
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    Dipstick ProvisionYes
    Sump StyleWet
    Pickup IncludedYes
    Drain Plug Thread Size (In.)1/2-20
    Bolts/Studs IncludedYes
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod3.48 in (88.392 mm)
    Gaskets IncludedYes
    One-Piece GasketYes
    Rear Main Seal Style2-piece
    Sump LocationRear
    Kicked OutNo
    Stroker ClearancedNo
    BaffledYes
    QuantitySold as a kit
    Oil Pan FinishClear zinc
    Drain Plug IncludedYes
    Dipstick IncludedNo
    Oil Pump IncludedNo
    Oil Pan Depth8.25 in (209.6 mm)
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Oil Pan StyleStreet/Strip
    Dipstick LocationDriver
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
