Vehicle Info NeededMOROSOPART NUMBER: 710-20413K
20413K Street/Strip Oil Pan Kit Big Block Chevy Gen V/Gen VI, Fits Most GM Rear Steer Chassis
$66530
Ships Tomorrow
Lowest Price GuaranteeBig Block Chevy

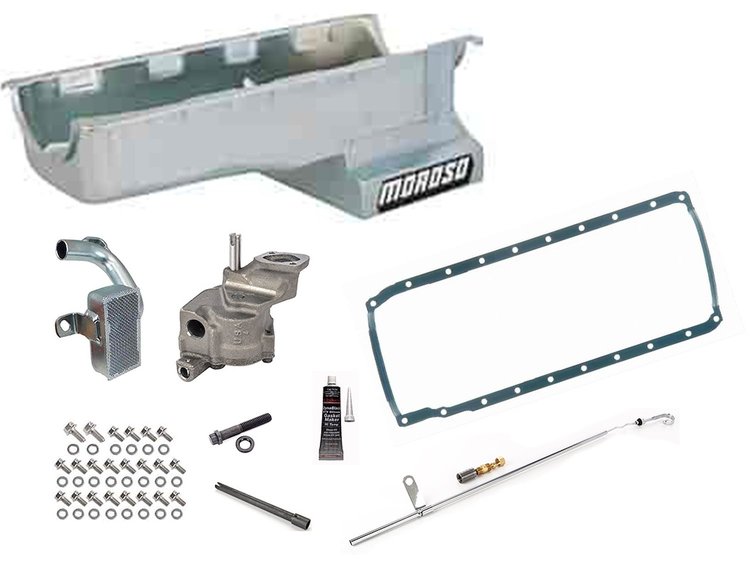

Street/Strip Oil Pan KitBig Block Chevy Gen V/Gen VI Includes:
- Street/Strip Oil Pan
- Oil Pump Pickup
- Oil Pump
- H/P Oil Pan Gasket
- Oil Pan Bolts
- Oil Pump Bolt
- High-Strength Oil Pump Shaft
- Dipstick
- RTV
Moroso 20413K Includes:
- (1) Moroso Street/Strip Oil Pan, Clear Zinc 20413
- (1) Moroso Oil Pump Pickup 24440
- (1) Fel-Pro H/P Oil Pan Gasket 1866
- (1) JEGS High-Volume Oil Pump 555-23509
- (1) JEGS Oil Pan Bolt Set, Stainless Steel 555-83315
- (1) JEGS Oil Pump Bolt 555-23628
- (1) JEGS High-Strength Oil Pump Shaft 555-23651
- (1) JEGS Universal Oil Dipstick, Chrome 555-52270
- (1) JEGS Black RTV Sealant, 3.8 oz. Tube 555-28035
Moroso 20413K Notes:
- Oil pan capacities do not include oil filter capacity
- Fits most GM rear steer chassis except 1962-1967 Chevy II, V8 Vega/Monza and 1955-1957 Chevy
Part TypeOil Pan
BrandMOROSO
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedYes
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedYes
Drain Plug Thread Size (In.)1/2-20
QuantitySold as a Kit
Oil Pan FinishClear zinc
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.625 in (117.475 mm)
Gaskets IncludedYes
Oil Pan Depth8 in (203.2 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentDirect Fit
Kicked OutYes
Stroker ClearancedYes
Package Qty1
Package TypeEA
