Vehicle Info NeededMOROSOPART NUMBER: 710-20620

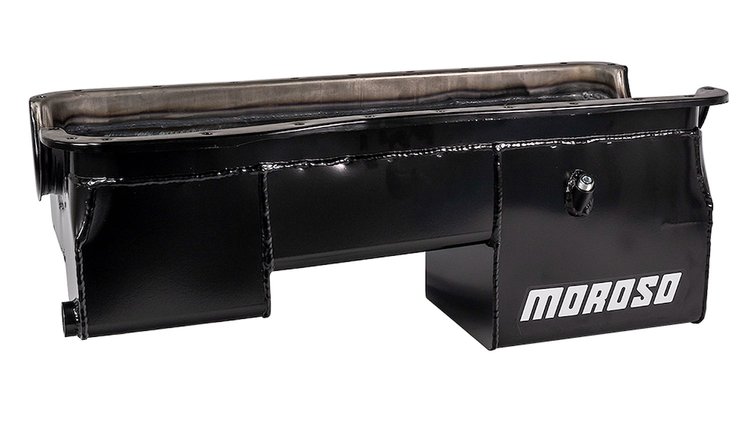

Street/Strip Oil Pan Big Block Ford 429-460
$60999
Ships on 11/12/2026
Lowest Price GuaranteeItems You Need
![Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]](https://www.jegs.com/images/mini_200/500/555/555-28030.jpg)
JEGS
Part Number : 555-28030
$799$8.99
You Save$1.00
![Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]](https://www.jegs.com/images/mini_200/500/555/555-28035.jpg)
JEGS
Part Number : 555-28035
$799$8.99
You Save$1.00
Big Block Ford
Street/Strip Oil PanBig Block Ford 429-460 Fits Ford Rear Sump applications (Except Mustang II) Deep Sump Rear Wet Sump 8-quart capacity 9" Depth Black Finish
- Clears stock cross-member and steering linkage
- Deep sump provides additional oil to reduce temperature
- Oil sump retaining system retains oil in pickup area
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickup:
- 710-24509 -- Fits Ford Motorsports 397-M-6600-A460 Pump and Mellings 689-M84D or 689-M84DHV (Fits only 4-bolt mains [SVO Block])
Applicaitons:
- 1979-95 Ford Mustang
- 1981-88 Ford Thunderbird & Mercury Cougar
- 1979-86 Mercury Capri
High-Performance Oil Pans
Moroso Street/Strip Oil Pans are for street-performance vehicles that occasionally see track time. Some tanks are modified with either a deep or a kicked-out sump for increased capacity to improve oil control under hard acceleration and help the engine run cooler. Moroso has designed these oil pans for simple bolt-on installation in a production chassis.
Part TypeOil Pan
Product LineMoroso Street/Strip Oil Pans
BrandMOROSO
Package Height9.3
Package Width18.0
Package Length25.8
Weight17.25 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth9 in (228.6 mm)
Rear Main Seal Style2-piece
Sump LocationDual sump
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentDirect Fit
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number20620
Package Qty1
Package TypeEA
