Made in USA
20625 Drag Race Oil Pan Ford 429-460
InfoVehicle Info Needed
MOROSOPART NUMBER: 710-20625

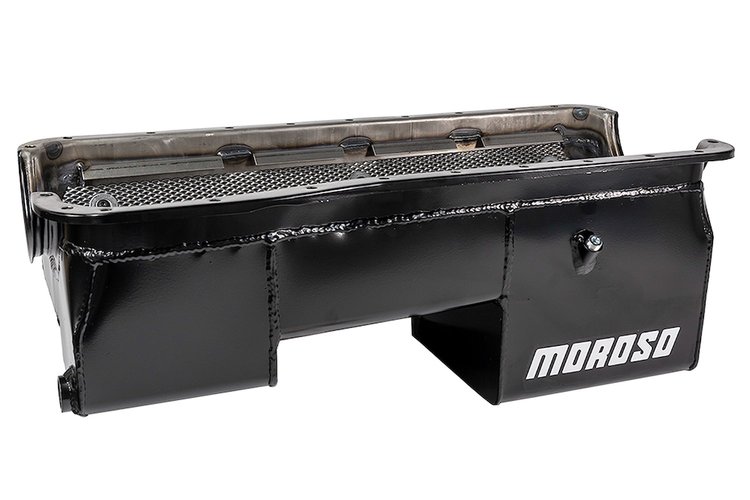

20625 Drag Race Oil Pan Ford 429-460

$72699
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford
    Drag Race Oil Pan
  • Ford 429-460
  • Fits Ford Rear Sump applications (Except Mustang II)
  • Deep sump
  • Rear Wet Sump
  • 7-Quart Capacity
  • 9" Depth
  • Black Steel

    Recommended Pickup:
  • 710-24508 Fits Ford Motorsport 397-M-6600-A460 and Mellings 689-M84D or 689-M84DHV

    Features:
  • Fits 1979-Up Mustang, 1981-88 Thunderbird/Cougar and 1979-86 Capri
  • Core based oil pan utilizes stock pan rail pattern
  • Clears stock cross-member and steering linkage
  • Deep sump provides additional oil to reduce temperature
  • Trap door baffling keeps oil in pickup area
  • Provision for Moroso Universal Dipsticks
  • Stock starter with 184-tooth flywheel

    Note: Oil pan capacities do not include oil filter capacity

    Oil Pans to Maximize Your Engine's Performance

    Available in both wet and dry sump versions, Moroso Drag Race Oil Pans are intended for the racer looking for maximum horsepower gain and oil control during straight-line acceleration.

    Show More

    Eliminator Pans: For the economy-minded racer. Eliminator oil pans improve oil control for solid horsepower gains. The large power kickout, integral crankshaft scraper, windage tray, and internal baffling ensure quick oil return to the pick-up area under the most severe racing conditions.

    Pro Eliminator Oil Pans: Designed for ultra-high horsepower applications. These box style pans are the result of over 35 years of research and development. Pro Eliminator oil pans offer the right combination of oil control and power-producing features.

    Ultra Pro Dry Sump Oil Pans: For racers who demand the very best! Ultra Pro Dry Sump oil pans offer the ultimate in dry sump technology and are available for 3, 4, 4-1/2, and 5 stage systems. These oil pans feature a maximum size power kickout, block high scraper, uni-directional windage tray screen, and special baffling.

    Super Fueler Oil Pans: These oil pans were the first to break the 300 MPH barrier for nitro-burning and alcohol dragsters and funny cars. Super Fuel oil pans are available for both Chrysler and aftermarket blocks.

    Note: All steel pans will have a clear zinc finish.

Part TypeOil Pan
Product LineMoroso Drag Race Oil Pans
BrandMOROSO
Package Height11.0
Package Width12.0
Package Length26.0
Weight19.12 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth9 in (228.6 mm)
Rear Main Seal Style2-piece
Sump LocationDual sump
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number20625
Package Qty1
Package TypeEA
