Vehicle Info NeededMOROSOPART NUMBER: 710-21019

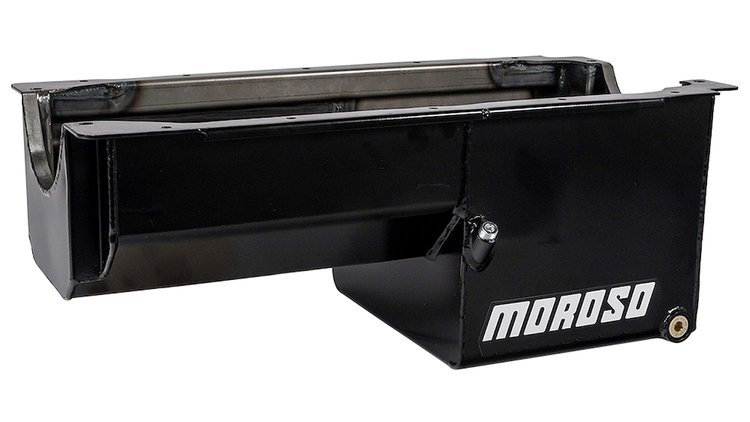

21019 Drag Race Oil Pan Fits Most Chassis (may require cross-member modification)
$72299
2 left in stock
Ships Today
Lowest Price GuaranteeGM
- Drag Race Oil Pan
- Fits Most Chassis (may require cross-member modification)
- Dart Iron Eagle Style Small Block Chevy
- Deep Sump
- Wet Sump
- 7-Quart Capacity
- 8.25" Depth
- Steel
- Black Finish
Recommended Pickups: - 710-24171 Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24351 Fits Moroso Small Block Chevy HV Race Pump 710-22111 and Stock Style Hi-Volume PumpsFeatures:
- Fully Fabricated Construction
- Accepts 4.25" stroke with steel rods
- Partitioned and Louvered Windage Tray for maximum horsepower gain
- Built in dipstick provision
- For use with 168-tooth flywheel combinationNote: Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height11.7
Package Width12.5
Package Length26.0
Weight19.0 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionNo
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.25 in (107.95 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number21019
Package Qty1
Package TypeEA
