Vehicle Info NeededMOROSOPART NUMBER: 710-21316

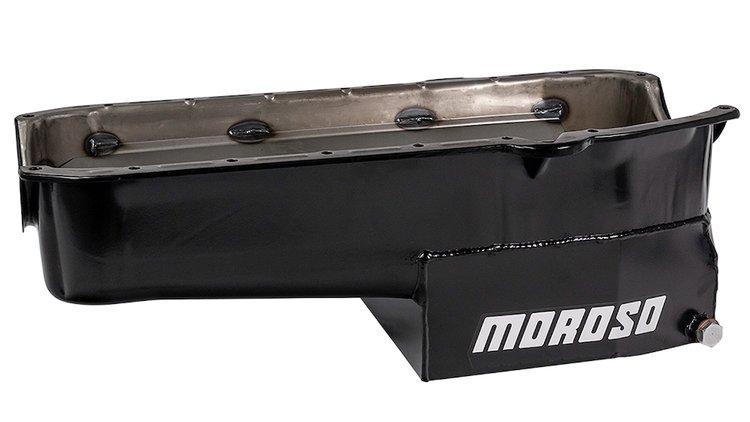

Oval Track Oil Pan Fits 1978-1987 GM Metric chassis
$22799
5 left in stock
Ships Today
Lowest Price GuaranteeChevy Small Block
Oval Track Oil PanFits 1978-1987 GM Metric chassis Fits Aftermarket and Camaro front ends Small Block Chevy Pre-1980 Driver-Side Dipstick Kicked-Out Sump Wet Sump 7-quart Capacity 7.5" Depth Painted Finish Includes Windage Tray
Recommended Pickups:
- 710-24316 Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24317 Fits Moroso Small Block Chevy HV Race Pumps and Stock Style Hi-Volume pumps
Features:
- Cost-effective Circle Track oil pan
- Accepts up to 4.125 in. stroke with most steel rods
- Fits 4 Bolt Main Caps Including Front and Rear
- Trap door baffles for oil control
- Removable louvered windage tray
- Built-in crankscraper
- Compatible with most starter/flywheel combinations
- Will not fit engine blocks with splayed main caps
Note: Oil pan capacities do not include oil filter capacity
Part TypeOil Pan
BrandMOROSO
Package Height3.7
Package Width12.8
Package Length24.1
Weight14.8 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledNo
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishBlack painted
Kickout PositionPassenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.8 in (96.52 mm)
Gaskets IncludedNo
Oil Pan Depth7.5 in (190.5 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number21316
Package Qty1
Package TypeEA
