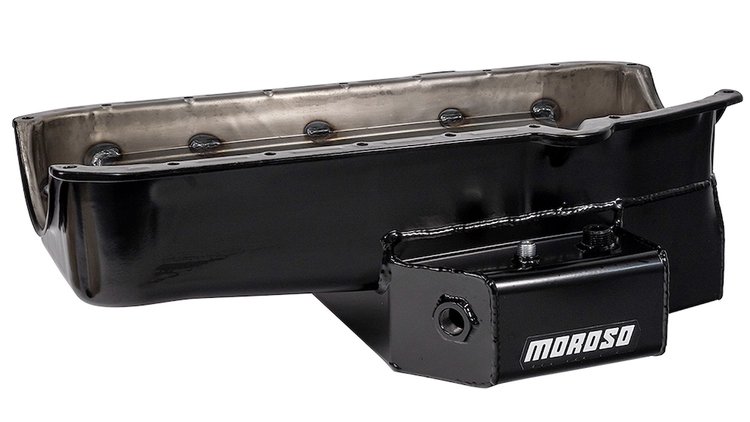

21812 Road Race Oil Pan C3 & C4 Corvette, Kit Cars

Name: 21812 Road Race Oil Pan C3 & C4 Corvette, Kit Cars
Brand: MOROSO
SKU: 710-21812
Price: 527.99 USD
Availability: InStock

^$527⁹⁹

1 left in stock

Ships on Sep 14, 2026

Lowest Price Guarantee

Small Block Chevy

Road Race Oil Pan

C3 & C4 Corvette, Kit Cars

Low Ground clearance applications

Pre-1980 Small Block Chevy with Driver Side Dipstick

With 2-piece Rear Main Seal

Kicked-Out Sump

Wet Sump 7-quart capacity

Clear Zinc Finish

Recommended Pickups:

710-24811 Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style pumps
710-24814 Fits Moroso Small Block Chevy HV Race Pump 710-22111 and Stock Style Hi-Volume Pumps

Features:

Accepts up to 4.125 in. stroke with most steel rods
Fits 4 Bolt Main Caps Including Front and Rear
5 trap door baffles for oil control in Road Racing also an excellent Road Race pan
Has a built-in crank scraper, removable louvered windage tray for horsepower
Rear Sump is 7" deep, 13.75" wide and 12" long
Includes 20mm fitting for oil level sensor
Uses stock dipstick
Accepts Universal Dipsticks 710-25970, 710-25971 and 710-25973
Compatible with most starter/flywheel combinations

Note: Oil pan capacities do not include oil filter capacity

Performance Oil Pans Designed for Road Racing Environments

Moroso has combined their drag racing and oval track experience to develop these Road Race Oil Pans. Each high-performance pan is designed to provide superior oil control when accelerating, braking, or turning in any direction. With fabricated steel construction, thick pan rails, and trap doors that contain the oil in any racing situation, Moroso Road Race Pans supply the right amount of oil to your engine so it can reach its full potential.

Part TypeOil Pan

Product LineMoroso Road Race Oil Pans

BrandMOROSO

Package Height9.0

Package Width15.75

Package Length23.75

Weight17.61 PG

Part CategoryPerformance Parts

Maximum Stroke With Oe Rod4.125 in (104.775 mm)

Oil Pan Depth7 in (177.8 mm)

Part FitmentSemi Universal

Vendor Part Number21812
