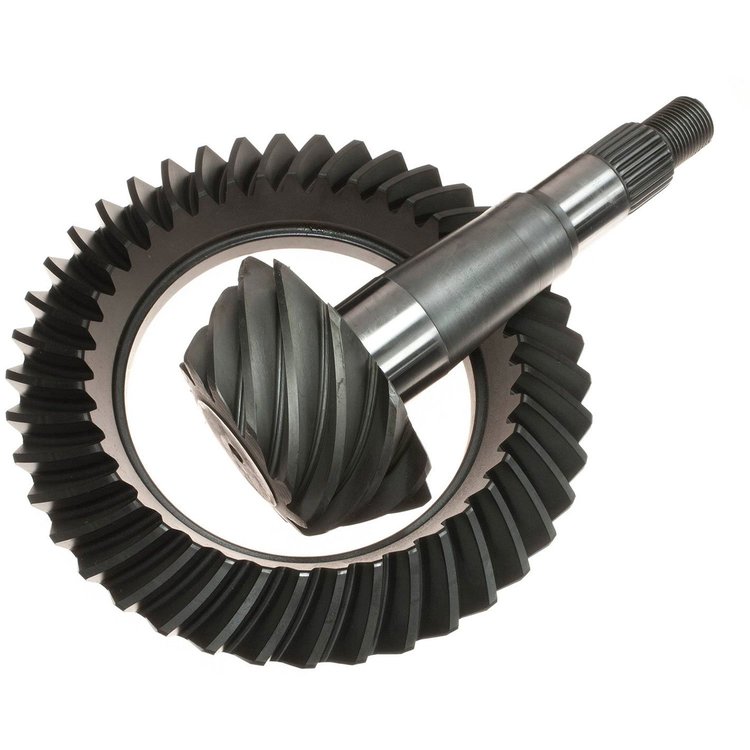

Ring & Pinion Gears Chrysler & Jeep 8.25" & 8.375"

Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-C8.25-456

Ring & Pinion Gears Chrysler & Jeep 8.25" & 8.375"

Name: Ring & Pinion Gears Chrysler & Jeep 8.25" & 8.375"
Brand: MOTIVE GEAR
SKU: 683-C8.25-456
Price: 275.84 USD
Availability: InStock

^$275⁸⁴

Ships on 09/16/2026

Lowest Price Guarantee

Chrysler/Jeep 8.25"/8.375"

Chrysler & Jeep 8.25" & 8.375"
Ratio: 4.56
Teeth: 41-9

Specifications:
Ring Gear Diameter: 8.25"
10-3/8" x 24 Left Hand Threaded Bolts
Pinion Diameter: 1.626" 27-Splines
Cases: 2.71 & Numerically Higher
8620 Material - Heat Treated
Applications:
1973-97 Passenger Cars, Various
1969-Up B100, 150, 200, 250
1966-97 B, D, W-100
1966-97 B, D, W-200
1966-97 B, D, W-300
1976-80 Aspen/Volare
1970-74 Barracuda
1970-74 Challenger
1973-76 Charger/Coronet
1997-01 Cherokee
1987-Up Chrysler
1972-79 Chrysler 300
1975-83 Cordoba
1987-Up Dakota
1990-97 Dakota
1972-76 Dart
1977-83 Diplomat/LeBaron
1998-Up Durango
1973-76 Duster
1980-89 Fifth Ave.
1970-81 Fury
1971-83 Imperial
2002-Up Liberty
1978-83 Mirada/Magnum
1972-73 Newort
1972-88 New Yorker
1970-74 Polar/Satellite
1979-81 St. Regis
1986-Up W100, 150
1969-96 Truck 1/2 Ton
1997-Up Truck 1/2 Ton Ram

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight16.53 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity41

Differential Carrier Break2.71 and Higher

Cover Bolt Quantity10

Pinion Spline Count27

Ring Gear Material8620 Steel

Ring Gear Diameter8.25 in (209.6 mm)

Pinion Shaft Diameter1.626 in (41.3 mm)

Pinion Gear Tooth Quantity9

Axle TypeChrysler 8.25 in.

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberC8.25-456

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
