Product Discontinued

MOTIVE GEARPART NUMBER: 683-C8-391

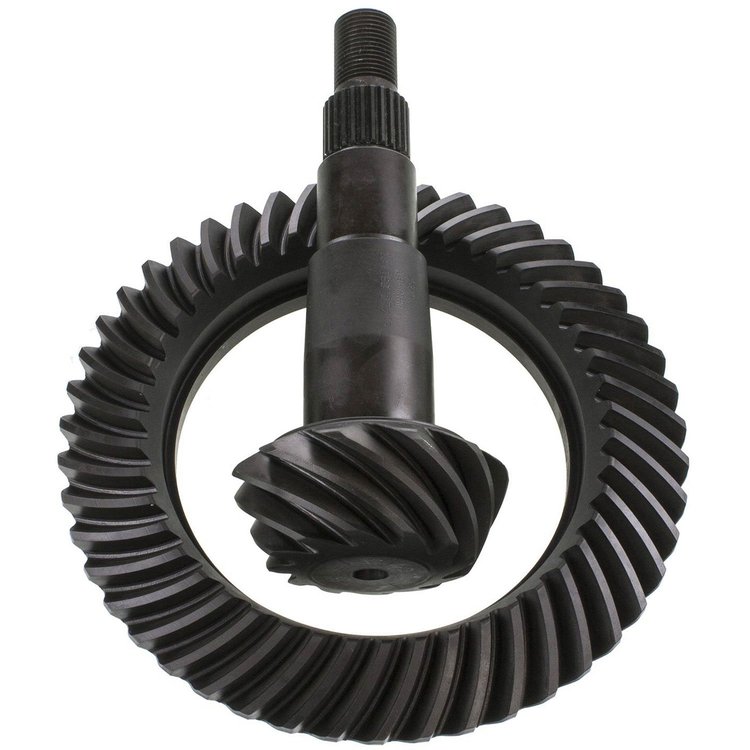

Ring & Pinion Gears Chrysler 8" Front

Name: Ring & Pinion Gears Chrysler 8" Front
Brand: MOTIVE GEAR
SKU: 683-C8-391
Price: 384.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler 8" Front

Chrysler 8" Front
Ratio: 3.91
Teeth: 39-10

Specifications:
Ring Gear Diameter: 7-9/16"
8- 3/8" x 24 Right Hand Threaded Bolts
Pinion Diameter: 1.406" 26-Splines
Cases: 3.31 & Numerically Lower; 3.54 & Numerically Higher
8620 Material - Heat Treated
Applications:
2000-Up Dodge Durango (F)
2000-Up Dodge Dakota
Truck 1/2 Ton R1500 (F)

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight13.1 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity39

Differential Carrier Break3.54 and Higher

Cover Bolt Quantity12

Pinion Spline Count26

Ring Gear Material8620 Steel

Ring Gear Diameter8 in (203.2 mm)

Pinion Shaft Diameter1.406 in (35.7 mm)

Pinion Gear Tooth Quantity10

Axle TypeChrysler 8 in.

Ring Gear Bolt Quantity8

Part FitmentSemi Universal

Vendor Part NumberC8-391

Package Qty1

Package TypeEA
