Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-C8-456

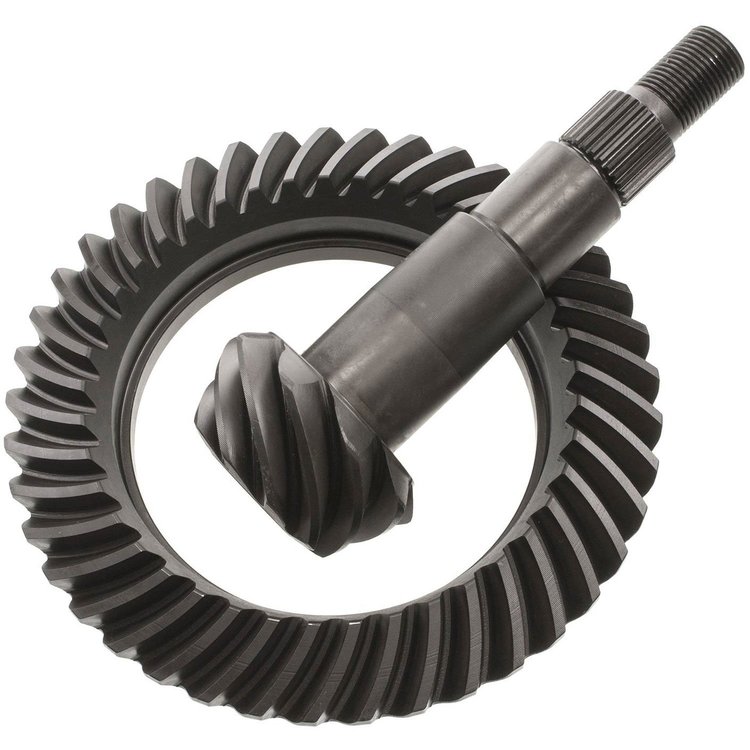

Ring & Pinion Gears Chrysler 8" Front

Name: Ring & Pinion Gears Chrysler 8" Front
Brand: MOTIVE GEAR
SKU: 683-C8-456
Price: 385.01 USD
Availability: InStock

^$385⁰¹

1 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Chrysler 8" Front

Chrysler 8" Front
Ratio: 4.56
Teeth: 41-9

Specifications:
Ring Gear Diameter: 7-9/16"
8- 3/8" x 24 Right Hand Threaded Bolts
Pinion Diameter: 1.406" 26-Splines
Cases: 3.31 & Numerically Lower; 3.54 & Numerically Higher
8620 Material - Heat Treated
Applications:
2000-Up Dodge Durango (F)
2000-Up Dodge Dakota
Truck 1/2 Ton R1500 (F)

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.3

Package Width11.1

Package Length15.0

Weight13.2 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity41

Differential Carrier Break3.54 and Higher

Cover Bolt Quantity10

Pinion Spline Count26

Ring Gear Material8620 Steel

Ring Gear Diameter8 in (203.2 mm)

Pinion Shaft Diameter1.406 in (35.7 mm)

Pinion Gear Tooth Quantity9

Axle TypeChrysler 8 in.

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberC8-456

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
