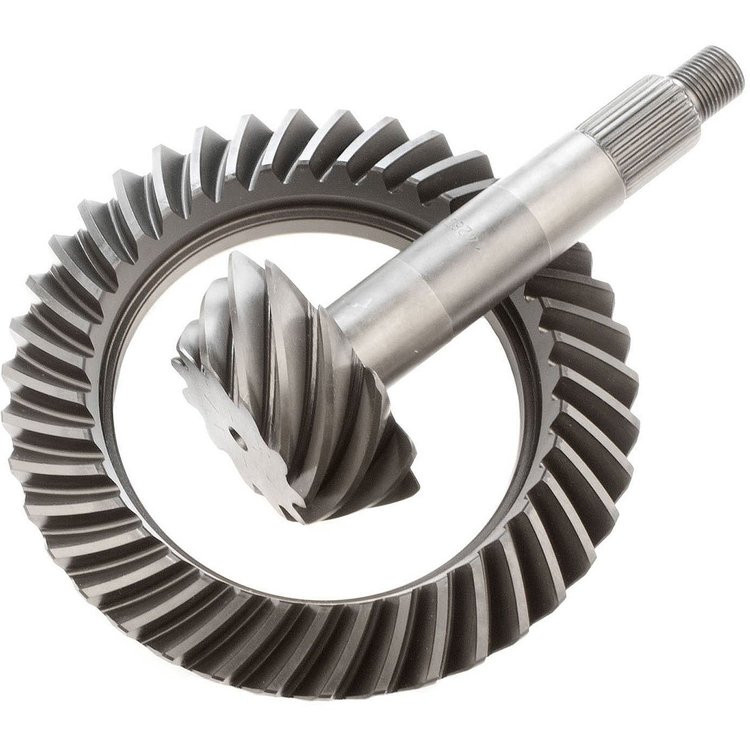

Ring & Pinion Gears Chrysler 8.75" (Early 741 Housing)

Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-C887355M

Ring & Pinion Gears Chrysler 8.75" (Early 741 Housing)

Name: Ring & Pinion Gears Chrysler 8.75" (Early 741 Housing)
Brand: MOTIVE GEAR
SKU: 683-C887355M
Price: 453.19 USD
Availability: OutOfStock

^$453¹⁹

Lowest Price Guarantee

Chrysler 8.75" (Early 741 Housing)

Chrysler 8.75" (Early 741 Housing)
Ratio: 3.55
Teeth: 39-11

Specifications:
10 Bolt Third Member
Ring Gear Diameter: 8.75"
12-3/8" x 24 Left Hand Threaded Bolts
Pinion Diameter: 1.375" 29-Splines
741 Style Casting - Straight Pinion
Cases: No Case Breaks
8620 Material - Heat Treated
Applications:
1965-68 B200/250
1964-68 Barracuda
1957-68 Belvidere/300
1966-68 Charger (Dayton)
1963-68 Concord/Monoco/Polara
1966-68 Dart/Swinger
1957-68 Fury/Imperial/Town & Country
1967-68 Road Runner/Satellite
1968 Super Bee
1960-68 Valiant
1965-68 W100/2150

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.5

Package Width11.2

Package Length15.1

Weight15.18 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter8.75 in (222.3 mm)

Ring Gear Tooth Quantity39

Pinion Shaft Diameter1.375 in (34.9 mm)

Pinion Gear Tooth Quantity11

Axle TypeChrysler 8.75 in.

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Cover Bolt QuantityDropout

Pinion Spline Count29

Vendor Part NumberC887355M

Package Qty1

Package TypeEA
