MOTIVE GEARPART NUMBER: 683-C9.25-321

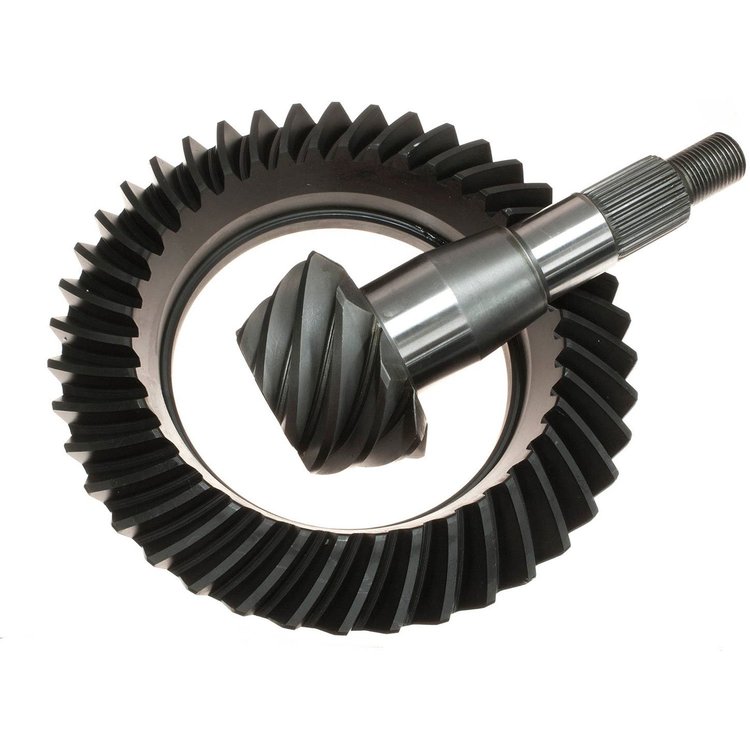

Ring & Pinion Gears Chrysler 9.25" Rear

Name: Ring & Pinion Gears Chrysler 9.25" Rear
Brand: MOTIVE GEAR
SKU: 683-C9.25-321
Price: 276.75 USD
Availability: InStock

^$276⁷⁵

Ships on 09/16/2026

Lowest Price Guarantee

Chrysler 9.25" Rear

Chrysler 9.25" Rear
Ratio: 3.21
Teeth: 45-14

Specifications:
Ring Gear Diameter: 9.25"
12-7/16" x 18 Left Hand Threaded Bolts
Pinion Diameter: 1.876" 29-Splines
Case: 2.71 & Numerically Higher
8620 Material - Heat Treated
Applications:
1984-On B350
1974-76 Charger
1975-81 Cordoba
1974-On D300/350
1998-On Dakota W/V8
1998-On Durango
1980-81 Fifth Avenue
1973-81 Fury
1974-75 Imperial
1975-85 Monaco
1973-81 Newport
1972-81 New Yorker
1970-74 Polara
1974-93 Ramcharger
1974-On Trailduster
1974-On Truck 1/2 Ton
1974-On Truck 3/4 Ton
1974-00 Truck 1 Ton
1974-On W100/W150/W200/W250

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.3

Package Width11.1

Package Length15.0

Weight19.61 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter9.25 in (235 mm)

Ring Gear Tooth Quantity45

Pinion Shaft Diameter1.876 in (47.7 mm)

Pinion Gear Tooth Quantity14

Axle TypeChrysler 9.25 in.

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Cover Bolt Quantity12

Pinion Spline Count29

Vendor Part NumberC9.25-321

Package Qty1

Package TypeEA
