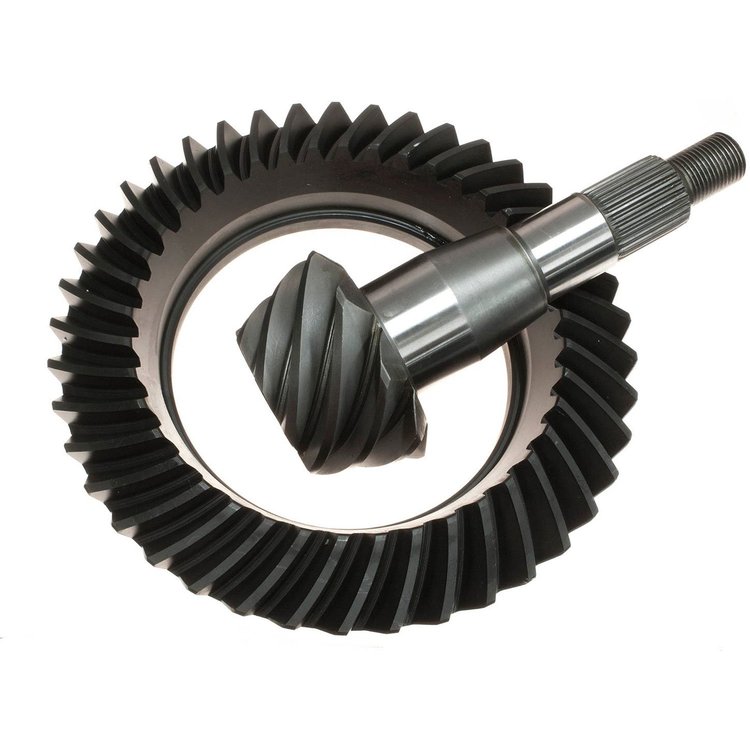

Ring & Pinion Gears Chrysler 9.25" Rear

Name: Ring & Pinion Gears Chrysler 9.25" Rear
Brand: MOTIVE GEAR
SKU: 683-C9.25-456
Price: 266.56 USD
Availability: InStock

^$266⁵⁶

Ships on 10/26/2026

Lowest Price Guarantee

Chrysler 9.25" Rear

Chrysler 9.25" Rear
Ratio: 4.56
Teeth: 41-9

Specifications:
Ring Gear Diameter: 9.25"
12-7/16" x 18 Left Hand Threaded Bolts
Pinion Diameter: 1.876" 29-Splines
Case: 2.71 & Numerically Higher
8620 Material - Heat Treated
Applications:
1984-On B350
1974-76 Charger
1975-81 Cordoba
1974-On D300/350
1998-On Dakota W/V8
1998-On Durango
1980-81 Fifth Avenue
1973-81 Fury
1974-75 Imperial
1975-85 Monaco
1973-81 Newport
1972-81 New Yorker
1970-74 Polara
1974-93 Ramcharger
1974-On Trailduster
1974-On Truck 1/2 Ton
1974-On Truck 3/4 Ton
1974-00 Truck 1 Ton
1974-On W100/W150/W200/W250

OEM-Quality Ring and Pinions

Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.

Part TypeRing and Pinion

Product LineMotive Gear Ring & Pinion Gears

BrandMOTIVE GEAR

Package Height5.3

Package Width11.3

Package Length14.9

Weight20.25 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter9.25 in (235 mm)

Ring Gear Tooth Quantity41
