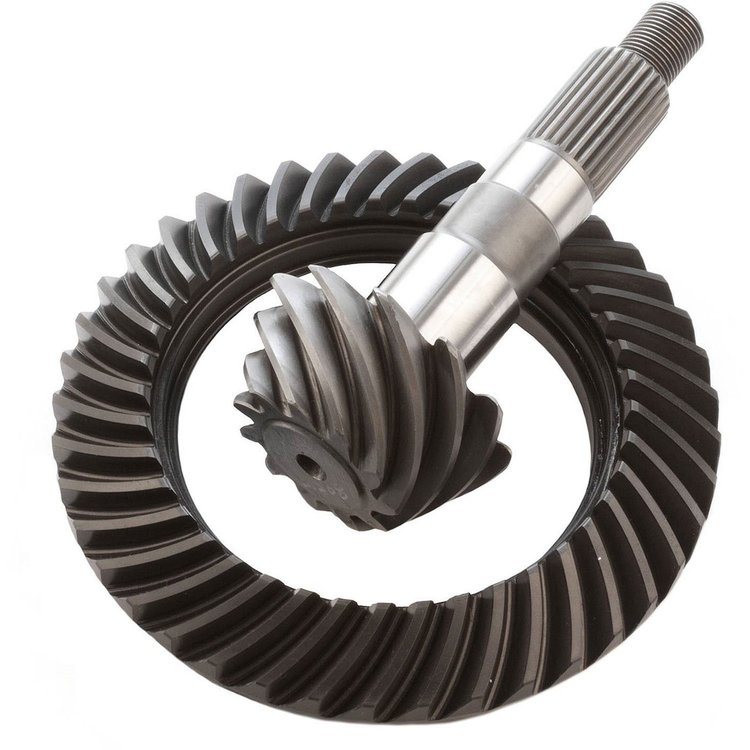

Ring & Pinion Gears DANA 30 Straight Cut Front & Rear
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-D30-410

Ring & Pinion Gears DANA 30 Straight Cut Front & Rear

$23199
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

DANA 30
Ring & Pinion Gears
  • DANA 30 Straight Cut Front & Rear
  • Ratio: 4.10
  • Teeth: 41-10

    Specifications:

    • Ring Gear Diameter: 7.20"
    • 10-3/8" x 20 Hand Threaded Bolts
    • Pinion Diameter: 1.376" 26-Splines
    • Case: 3.73 & Numerically Higher
    • 8620 Material - Heat Treated

    Applications:

    • 1987-87.5 AMC Eagle (front)
    • 1967-71 Bronco & U100 (front)
    • 2001-On Explorer
    • 1987-89.5 Ford Aerostar (rear)
    • 1999-On Grand Cherokee WJ (front)
    • 1992-96 Grand Cherokee ZJ (front)
    • 1967-75 IHC Scout F (front)
    • 1972-73 Jeepster (front)
    • 1967-74 Jeep C101 F&R (front)
    • 1974-86 Jeep CJ5, CJ7F & CJ8 (front)
    • 1966-71 Jeep J10 F
    • 1972-73 Jeep Wagoneer F



    • Part TypeRing and Pinion
    BrandMOTIVE GEAR
    Package Height5.4
    Package Width11.1
    Package Length15.1
    Weight9.54 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Ring Gear Tooth Quantity41
    Differential Carrier Break3.73 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count26
    Ring Gear Material8620 Steel
    Ring Gear Diameter7.125 in (181 mm)
    Pinion Shaft Diameter1.376 in (35 mm)
    Pinion Gear Tooth Quantity10
    Axle TypeDana 30
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part NumberD30-410
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
