MOTIVE GEARPART NUMBER: 683-D30-410TJ

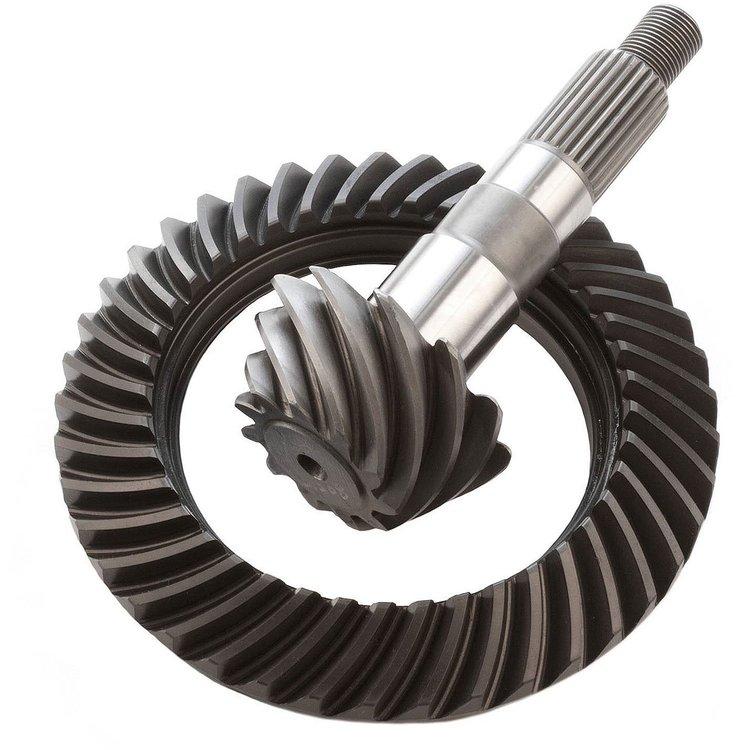

Ring & Pinion Gears Dana 30 Front

Name: Ring & Pinion Gears Dana 30 Front
Brand: MOTIVE GEAR
SKU: 683-D30-410TJ
Price: 231.97 USD
Availability: InStock

^$231⁹⁷

Ships on 09/08/2026

Lowest Price Guarantee

DANA 30

Ring & Pinion Gears

DANA 30 Front

Ratio: 4.10

Teeth: 41-10

Applications:

1997-2006 Wrangler TJ

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.4

Package Width11.1

Package Length15.0

Weight9.06 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity41

Differential Carrier Break3.73 and Higher

Cover Bolt Quantity10

Pinion Spline Count26

Ring Gear Material8620 Steel

Ring Gear Diameter7.125 in (181 mm)

Pinion Shaft Diameter1.376 in (35 mm)

Pinion Gear Tooth Quantity10

Axle TypeDana 30

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberD30-410TJ

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
