Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-D30-456F

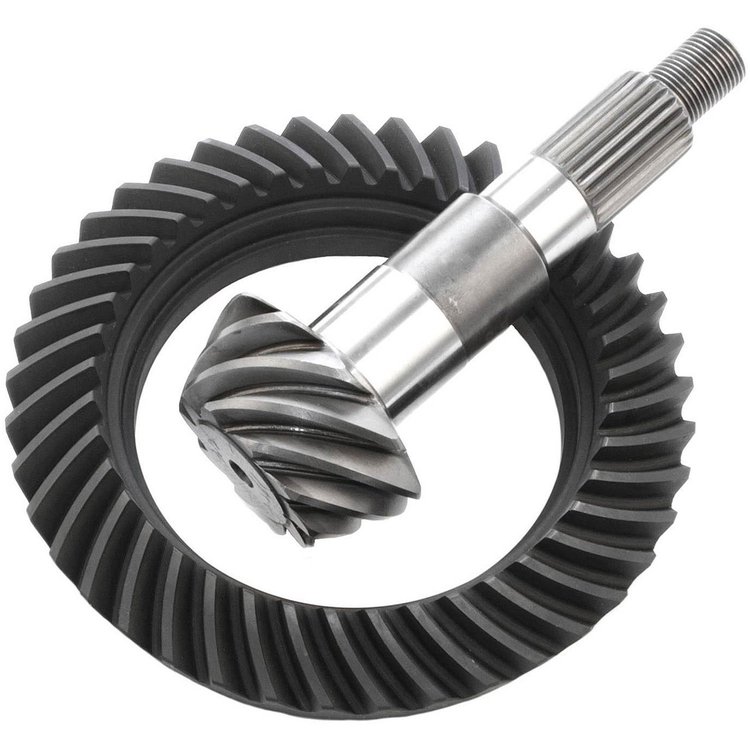

Ring & Pinion Gears DANA 30 Reverse Front
$23201
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeDANA 30
- Ring & Pinion Gears
- DANA 30 Reverse Front
- Ratio: 4.56
- Teeth: 41-9
Specifications:
- Ring Gear Diameter: 7.20"
- 10-3/8" x 20 Hand Threaded Bolts
- Pinion Diameter: 1.376" 26-Splines
- Case: 3.55 & Numerically Lower, 3.73 & Numerically Higher
- 8620 Material - Heat Treated
Applications:
- 1984-91 Comanche (front)
- 1984-99 Jeep Cherokee XJ (front)
- 1987-96 Wrangler YJ (front)
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.4
Package Width11.2
Package Length15.1
Weight9.26 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse
Ring Gear Tooth Quantity41
Differential Carrier Break3.73 and Higher
Cover Bolt Quantity10
Pinion Spline Count26
Ring Gear Material8620 Steel
Ring Gear Diameter7.125 in (181 mm)
Pinion Shaft Diameter1.375 in (34.9 mm)
Pinion Gear Tooth Quantity9
Axle TypeDana 30
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberD30-456F
Package Qty1
Package TypeEA
