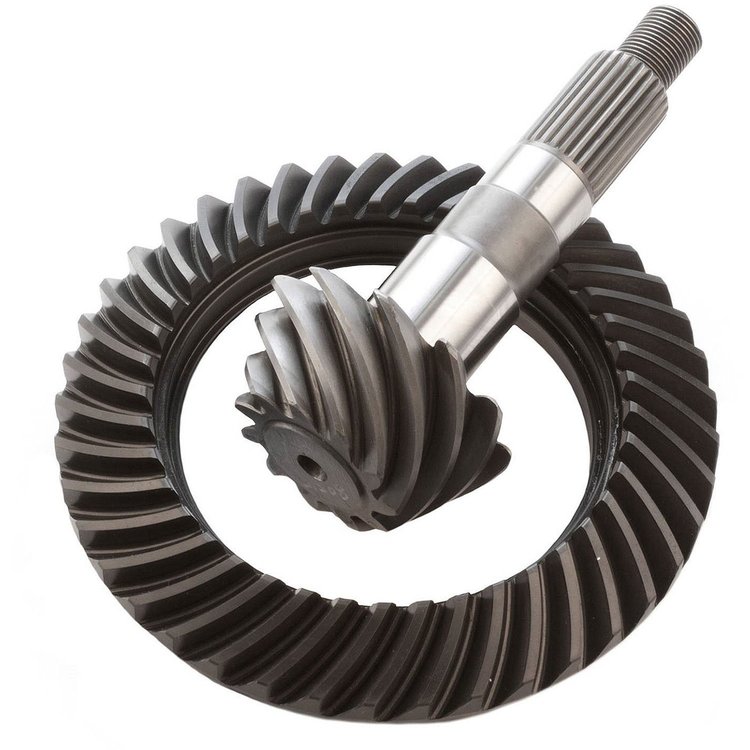

Ring & Pinion Gears DANA 30 Straight Cut Front & Rear

Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-D30-488

Ring & Pinion Gears DANA 30 Straight Cut Front & Rear

Name: Ring & Pinion Gears DANA 30 Straight Cut Front & Rear
Brand: MOTIVE GEAR
SKU: 683-D30-488
Price: 231.99 USD
Availability: InStock

^$231⁹⁹

8 left in stock

Ships Today

Lowest Price Guarantee

DANA 30

DANA 30 Straight Cut Front & Rear
Ratio: 4.88
Teeth: 39-8

Specifications:
Ring Gear Diameter: 7.20"
10-3/8" x 20 Hand Threaded Bolts
Pinion Diameter: 1.376" 26-Splines
Case: 3.55 & Numerically Lower, 3.73 & Numerically Higher
8620 Material - Heat Treated
Applications:
1987-87.5 AMC Eagle (front)
1967-71 Bronco & U100 (front)
2001-On Explorer
1987-89.5 Ford Aerostar (rear)
1999-On Grand Cherokee WJ (front)
1992-96 Grand Cherokee ZJ (front)
1967-75 IHC Scout F (front)
1972-73 Jeepster (front)
1967-74 Jeep C101 F&R (front)
1974-86 Jeep CJ5, CJ7F & CJ8 (front)
1966-71 Jeep J10 F
1972-73 Jeep Wagoneer F

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.7

Package Width11.3

Package Length15.6

Weight9.85 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity39

Differential Carrier Break3.73 and Higher

Cover Bolt Quantity10

Pinion Spline Count26

Ring Gear Material8620 Steel

Ring Gear Diameter7.125 in (181 mm)

Pinion Shaft Diameter1.376 in (35 mm)

Pinion Gear Tooth Quantity8

Axle TypeDana 30

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberD30-488

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
