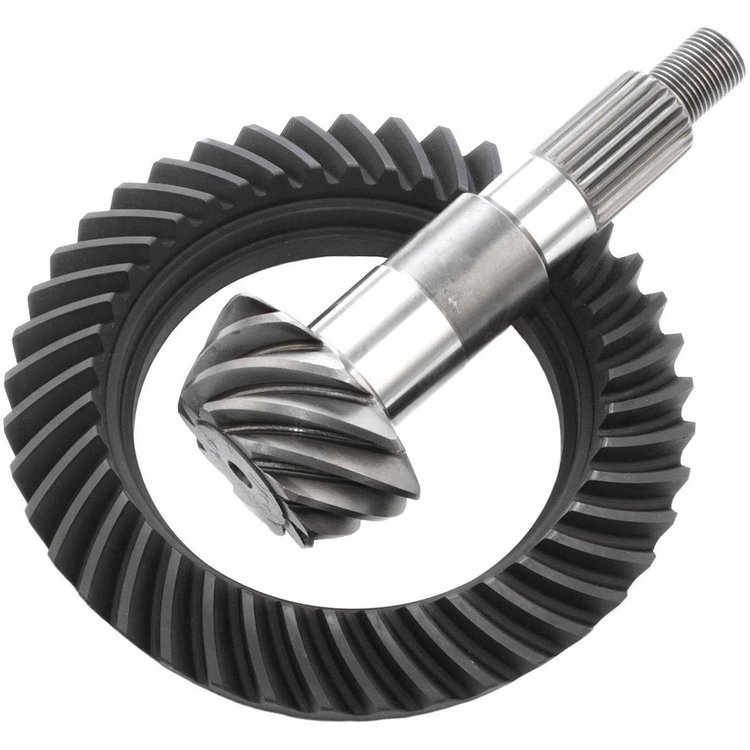

Ring & Pinion Gears DANA 30 Reverse Front

Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-D30-488F

Ring & Pinion Gears DANA 30 Reverse Front

Name: Ring & Pinion Gears DANA 30 Reverse Front
Brand: MOTIVE GEAR
SKU: 683-D30-488F
Price: 231.97 USD
Availability: InStock

^$231⁹⁷

Ships on 09/14/2026

Lowest Price Guarantee

DANA 30

DANA 30 Reverse Front
Ratio: 4.88
Teeth: 39-8

Specifications:
Ring Gear Diameter: 7.20"
10-3/8" x 20 Hand Threaded Bolts
Pinion Diameter: 1.376" 26-Splines
Case: 3.55 & Numerically Lower, 3.73 & Numerically Higher
8620 Material - Heat Treated
Applications:
1984-91 Comanche (front)
1984-99 Jeep Cherokee XJ (front)
1987-96 Wrangler YJ (front)

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.4

Package Width11.2

Package Length15.2

Weight9.2 PG

Part CategoryPerformance Parts

Ring Gear RotationReverse

Ring Gear Tooth Quantity39

Differential Carrier Break3.73 and Higher

Cover Bolt Quantity10

Pinion Spline Count26

Ring Gear Material8620 Steel

Ring Gear Diameter7.125 in (181 mm)

Pinion Shaft Diameter1.376 in (35 mm)

Pinion Gear Tooth Quantity8

Axle TypeDana 30

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberD30-488F

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
