Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-D30-488RJK
Ring & Pinion Gears Dana 30 Front (non-Rubicon)
$24098
Ships on 09/15/2026
Lowest Price GuaranteeDANA 30

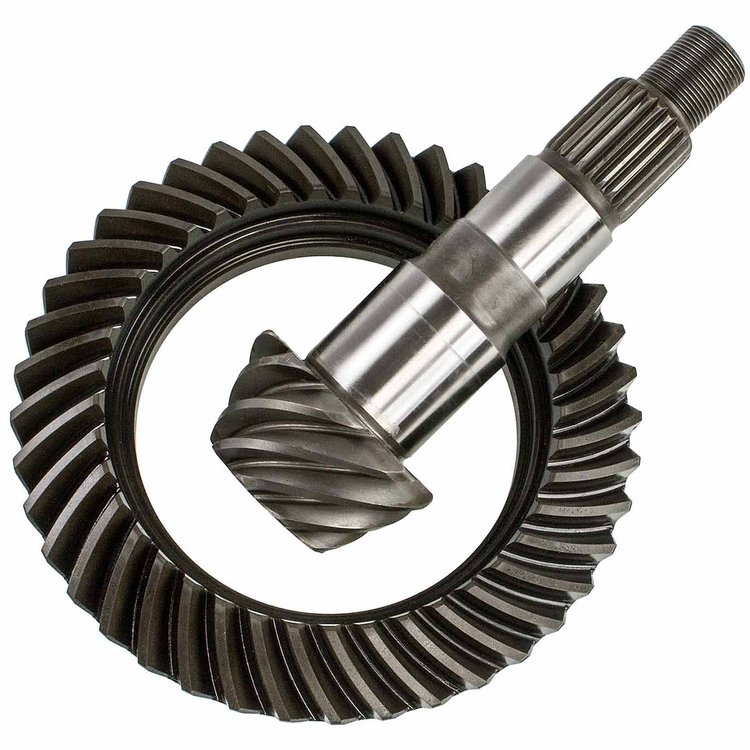

Ring & Pinion GearsDana 30 Front (non-Rubicon) Ratio: 4.88 Teeth: 39-8
Motive Gear's D30-488RJK ring and pinion set is cast out of 8620 Alloy Steel and compatible with Dana 30 Carriers designed for 3.73 and higher gear ratios.
Features:
- Reverse rotation for front differentials
- 1.376 in. diameter pinion shaft with 24 splines
- 7.125 in. ring gear diameter
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.5
Weight9.65 PG
Part CategoryPerformance Parts
Ring Gear RotationReverse
Ring Gear Tooth Quantity39
QuantitySold as a set
Differential Carrier Break3.73 and Higher
Cover Bolt Quantity10
Pinion Spline Count24
Ring Gear Material8620 Steel
Ring Gear Diameter7.125 in (181 mm)
Pinion Shaft Diameter1.376 in (35 mm)
Pinion Gear Tooth Quantity8
Axle TypeDana 30
Gear Ratio4.88
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberD30-488RJK
Package Qty1
Package TypeEA
