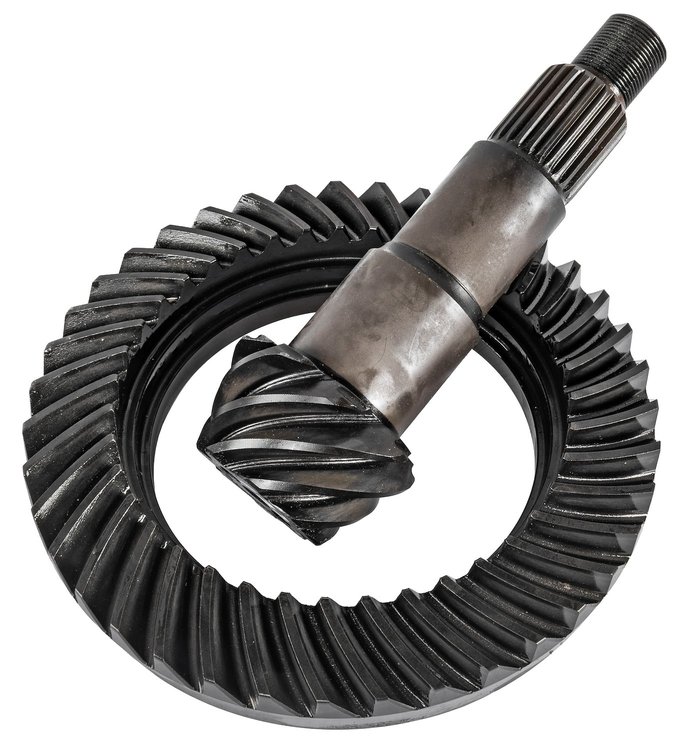

Dana 30 Ring & Pinion for 2007-2018 Jeep Wrangler JK Non-Rubicon, Front, Reverse Rotation Short Pinion [4.88 Ratio]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-600101

Dana 30 Ring & Pinion for 2007-2018 Jeep Wrangler JK Non-Rubicon, Front, Reverse Rotation Short Pinion [4.88 Ratio]

$23399$257.99You Save$24.00
2 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Dana 30 Front Reverse Rotation
Dana 30 Ring & Pinion
  • Fits 2007-2018 Jeep Wrangler JK, Non-Rubicon
  • Front
  • 4.88 Ratio
  • 39 Ring Gear & 8 Pinion Gear Teeth
  • Reverse Rotation

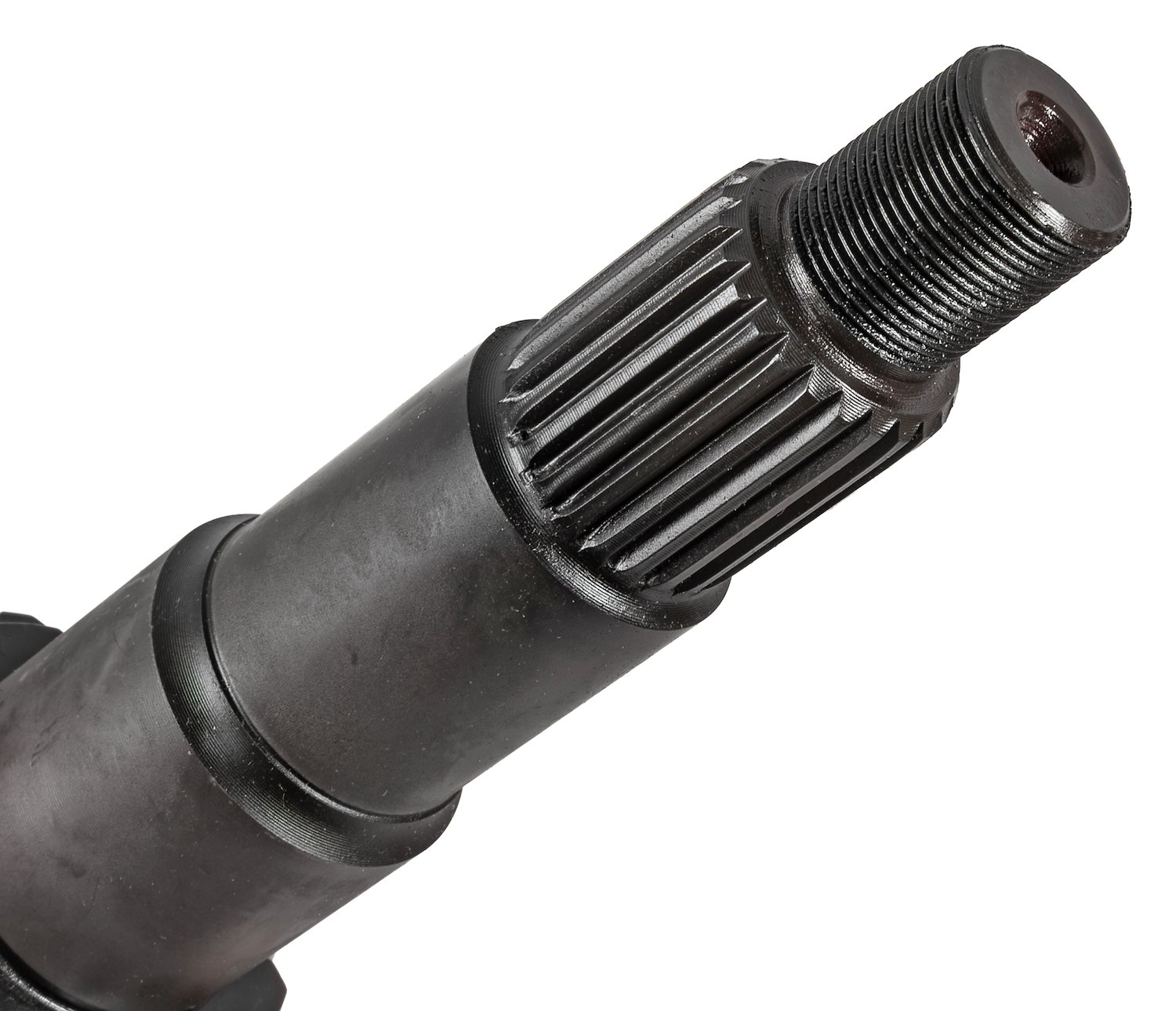

  • 24 Spline Short Pinion
  • Attaches with 10 Ring Gear Bolts
  • High-Grade Steel

    JEGS 555-600101 Dana 30 Ring and Pinion Includes:

    • (1) Gear Marking Compound with Brush
    • (1) Tube of RED Thread Locker
    • (1) Tube of RTV Silicone Gasket Maker

    JEGS 555-600101 Dana 30 Ring and Pinion Features:

    • Gear tooth surface finish is designed to reduce friction and heat
    • Constructed from high-grade steel with fitment designed to OEM specifications

    JEGS 555-600101 Dana 30 Ring and Pinion Specifications:

    • 4.88 Ratio, 39 Ring Gear and 8 Pinion Gear Teeth
    • 24 Spline Pinion Shaft
    • Attaches with 10 Ring Gear Bolts
    • 7.330 in. Ring Gear Diameter
    • 1.375 in. Pinion Shaft Diameter

    JEGS 555-600101 Dana 30 Ring and Pinion Notes:

    • Fits Reverse Rotation Dana 30 Jeep Wrangler JK Front Differentials Only
    • Part TypeRing and Pinion
    BrandJEGS
    Package Height6.4
    Package Width12.5
    Package Length16.4
    Weight11.32 PG
    Part CategoryReplacement Parts
    Ring Gear RotationReverse
    Pinion Gear Teeth8
    Carrier Bearings IncludedNo
    Carrier Shims IncludedNo
    Crush Sleeve IncludedNo
    Pinion Spline Count24
    Pinion Nut IncludedNo
    Axle LocationFront
    Ring And Pinion Ratio4.88:1
    Pinion Shaft Diameter1.375 in.
    Axle Bearings IncludedNo
    Cover Bolts10
    Carrier Breaks3.73 and Up
    Pinion Seal IncludedNo
    Friction Modifier IncludedNo
    NotesDoes not fit Rubicon models.
    Axle Seals IncludedNo
    Head Bearing IncludedNo
    Cover Gasket IncludedNo
    Ring Gear Bolts IncludedNo
    Tail Bearing IncludedNo
    Pinion Shims IncludedNo
    Ring Gear Diameter7.330 in.
    Installation Dvd IncludedNo
    Differential Oil IncludedNo
    Differential Cover IncludedNo
    Installation Kit IncludedNo
    Axle TypeDana 30, Jeep Wrangler JK
    Ring Gear Bolts10
    Ring Gear Teeth39
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
