Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-D44-513JL

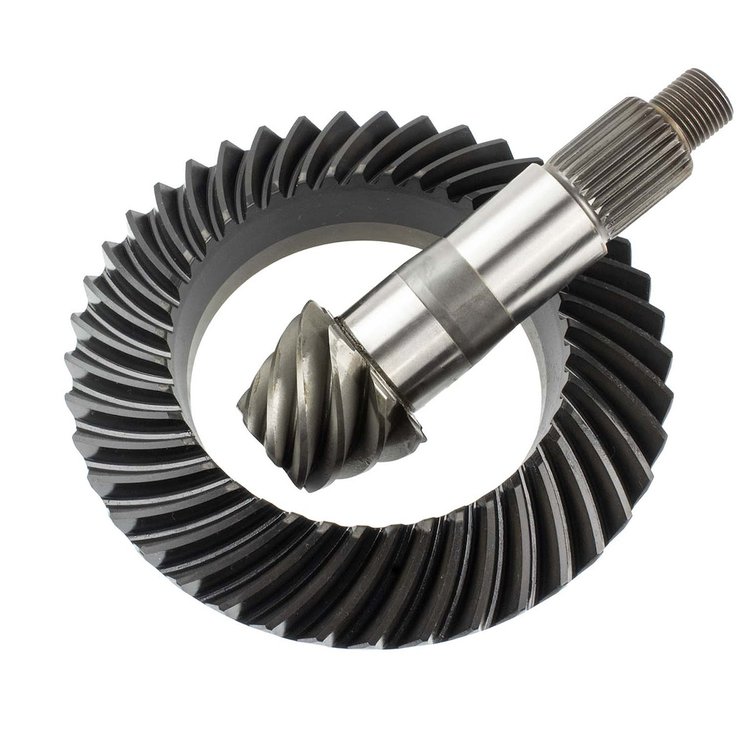

Ring & Pinion Gears for Jeep Wrangler JL - Ratio: 5.13
$34299
Ships on 09/18/2026
Lowest Price GuaranteeJeep Dana 44
Ring & Pinion GearsJeep Wrangler JL Jeep Gladiator JT Dana 44 JL Ratio: 5.13 Teeth: 41-8 Rear
The Motive Gear D44-513JL is a ring and pinion gear set made specifically for the Dana 44 JL axle used in the Jeep Wrangler JL and Jeep Gladiator JT.
Features:
- Cover Bolt Quantity: 12
- Differential Carrier Break: 3.07 and Up
- Pinion Shaft Diameter: 1.750 in.
- Pinion Spline Count: 28
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 8.660 in.
- Ring Gear Material: 8620 Steel
Part TypeRing and Pinion
BrandMOTIVE GEAR
Package Height5.25
Package Width11.0
Package Length15.0
Weight17.45 PG
Part CategoryPerformance Parts
Ring Gear Tooth Quantity41
QuantitySold as a set
Cover Bolt Quantity12
Pinion Spline Count28
Ring Gear Material8620 Steel
Ring Gear Diameter8.6 in (218.4 mm)
Jeep Jl1
Pinion Shaft Diameter1.750
Installation Kit IncludedNo
Pinion Gear Tooth Quantity8
Gear Ratio5.13
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberD44-513JL
Package Qty1
Package TypeEA
