Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-D60-410

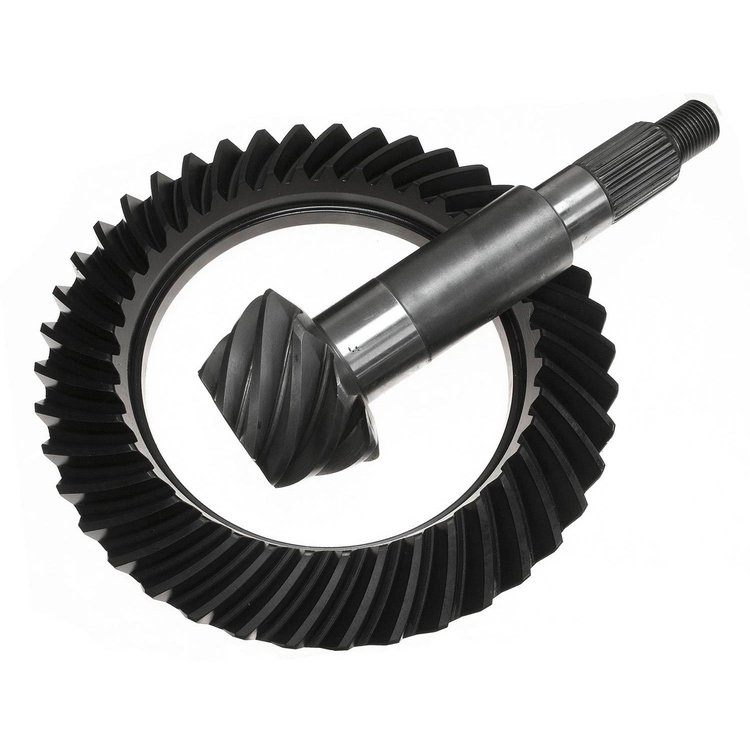

Ring & Pinion Gears Ratio: 4.10

Name: Ring & Pinion Gears Ratio: 4.10
Brand: MOTIVE GEAR
SKU: 683-D60-410
Price: 259.97 USD
Availability: InStock

^$259⁹⁷

Ships on 09/14/2026

Lowest Price Guarantee

DANA 60

Ratio: 4.10
Teeth: 41-10

Specifications:
Ring Gear Diameter: 9.75"
12-1/2" x 18 Right Hand Threaded Bolts
Pinion Diameter: 1.626" 29-Splines
Case: 4.10 & Numerically Lower
2-Series Carrier
8620 Material - Heat Treated
Applications:
1966-72 Dodge & Plymouth Cars w/ Hemi Engines
1977-95 Chevy C30/C35 (F)
1980-92 Chevy C20/C25 (R)
1975-On Chrysler 3/4 Ton (F)
1961-On Chrysler 3/4 Ton (R)
1994-On Chrysler 3/4 Ton Ram (Rear)
1975-On Chrysler 1 Ton (F)
1957-On Chrysler 1 Ton (R)
1969-On Dodge W200/W250 (F&R)
1982-92 Ford E250-E350
1967-85 Ford F100 (R)
1967-92 Ford F250 (F&R)
1978-92 Ford F350 (F&R)
1973-79 Ford 3/4 Ton (F)
1954-On Ford 3/4 Ton (R)
1979-98 Ford 1 Ton (F)
2000-On Ford 1 Ton (F)
1954-On Ford 1 Ton (R)
1967-72 GM 3/4 Ton (R)
1977-91 GM 1 Ton (F)
1973-91 GM 1 Ton (R)
1978-88 Jeep J20 (R)
1982-85 Jeep CJ Series (R)

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.1

Package Width10.9

Package Length15.1

Weight18.53 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth10

Ring Gear Tooth Quantity41

QuantitySold as a set

Differential Carrier Break4.10 and Lower

Cover Bolt Quantity10

Pinion Spline Count29

Ring Gear Material8620 Steel

Ring Gear Diameter9.75 in (247.7 mm)

Ring And Pinion Ratio4.10:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity10

Axle TypeDana 60

Ring Gear Bolts12

Cover Bolts10

Ring Gear Teeth41

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Vendor Part NumberD60-410

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
