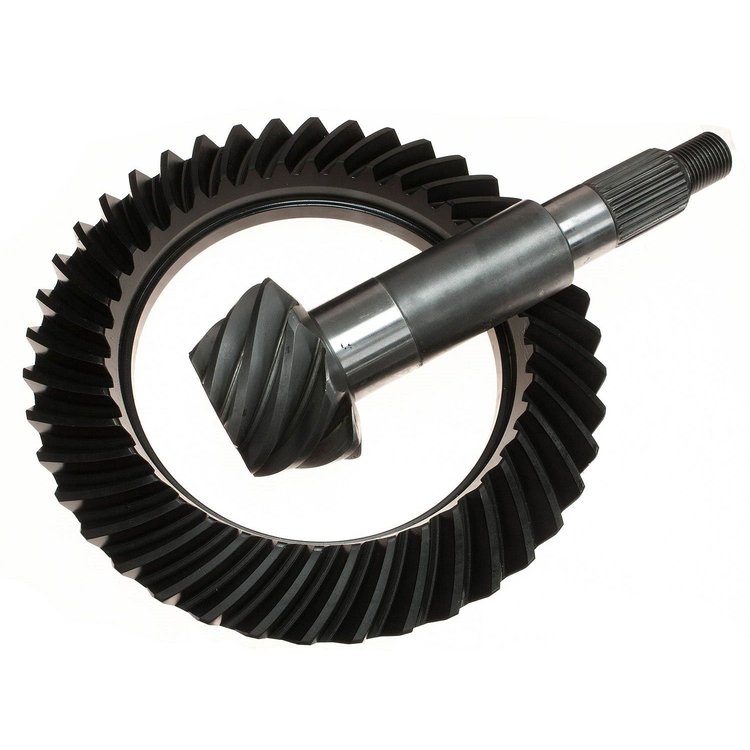

Ring & Pinion Gears Ratio: 5.13
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-D60-513

Ring & Pinion Gears Ratio: 5.13

$25999
ShippingShips on 09/14/2026
Lowest PriceLowest Price Guarantee

DANA 60
Ring & Pinion Gears
  • Ratio: 5.13
  • Teeth: 41-8

    Specifications:

    • Ring Gear Diameter: 9.75"
    • 12-1/2" x 18 Right Hand Threaded Bolts
    • Pinion Diameter: 1.626" 29-Splines
    • Case: 4.10 & Numerically Lower
    • 8620 Material - Heat Treated



    Applications:

    • 1966-72 Dodge & Plymouth Cars w/ Hemi Engines
    • 1977-95 Chevy C30/C35 (F)
    • 1980-92 Chevy C20/C25 (R)
    • 1975-On Chrysler 3/4 Ton (F)
    • 1961-On Chrysler 3/4 Ton (R)
    • 1994-On Chrysler 3/4 Ton Ram (Rear)
    • 1975-On Chrysler 1 Ton (F)
    • 1957-On Chrysler 1 Ton (R)
    • 1969-On Dodge W200/W250 (F&R)
    • 1982-92 Ford E250-E350
    • 1967-85 Ford F100 (R)
    • 1967-92 Ford F250 (F&R)
    • 1978-92 Ford F350 (F&R)
    • 1973-79 Ford 3/4 Ton (F)
    • 1954-On Ford 3/4 Ton (R)
    • 1979-98 Ford 1 Ton (F)
    • 2000-On Ford 1 Ton (F)
    • 1954-On Ford 1 Ton (R)
    • 1967-72 GM 3/4 Ton (R)
    • 1977-91 GM 1 Ton (F)
    • 1973-91 GM 1 Ton (R)
    • 1978-88 Jeep J20 (R)
    • 1982-85 Jeep CJ Series (R)



    • Part TypeRing and Pinion
    BrandMOTIVE GEAR
    Package Height5.4
    Package Width11.2
    Package Length15.4
    Weight17.5 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Ring Gear Tooth Quantity41
    Differential Carrier Break4.56 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count29
    Ring Gear Material8620 Steel
    Ring Gear Diameter9.75 in (247.7 mm)
    Pinion Shaft Diameter1.626 in (41.3 mm)
    Pinion Gear Tooth Quantity8
    Axle TypeDana 60
    Ring Gear Bolt Quantity12
    Part FitmentSemi Universal
    Vendor Part NumberD60-513
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
