Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-D80-488

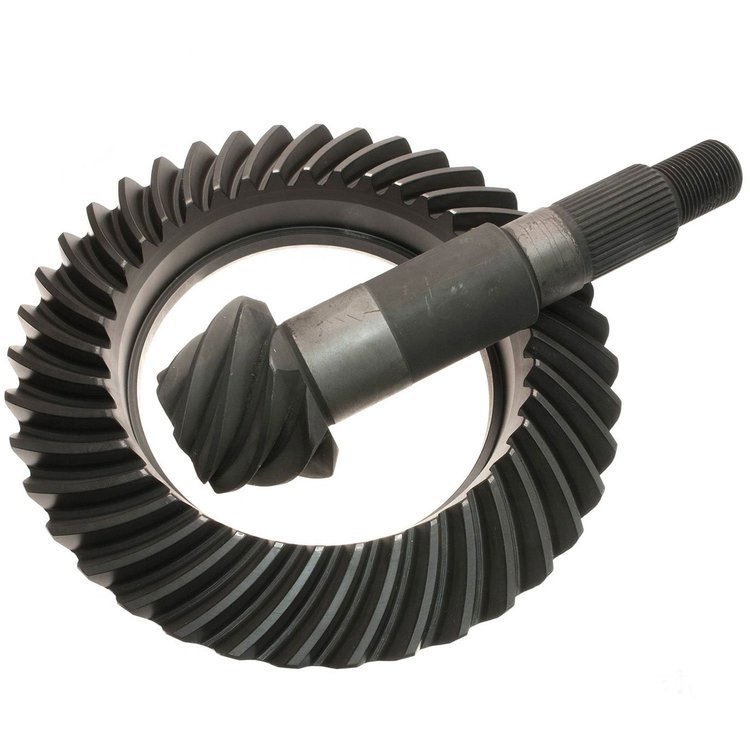

Ring & Pinion Gears Ratio: 4.88

Name: Ring & Pinion Gears Ratio: 4.88
Brand: MOTIVE GEAR
SKU: 683-D80-488
Price: 409.99 USD
Availability: InStock

^$409⁹⁹

Ships on 09/14/2026

Lowest Price Guarantee

DANA 80

Ratio: 4.88
Teeth: 39-08

Specifications:
Ring Gear Diameter: 11.25"
12-1/2" x 20 Right Hand Threaded Bolts
Pinion Diameter: 2" 37-Splines
Case: 3.73 & Numerically Lower, 4.10 & Numerically Higher
8620 Material - Heat Treated
Applications:
1994-On Chrysler 3/4 Ton
1994-On Chrysler 1 Ton
1988-99 Chevrolet C3500 1 Ton
1994-01 Dodge D/W350
1988-On Ford 1 Ton
1988-02 Ford F350, F450
1991-99 GM 1 Ton

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight33.65 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity39

Differential Carrier Break4.10 and Higher

Cover Bolt Quantity10

Pinion Spline Count37

Ring Gear Material8620 Steel

Ring Gear Diameter11.25 in (285.8 mm)

Pinion Shaft Diameter2 in (50.8 mm)

Pinion Gear Tooth Quantity8

Axle TypeDana 80

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Vendor Part NumberD80-488

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
