Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-F888430

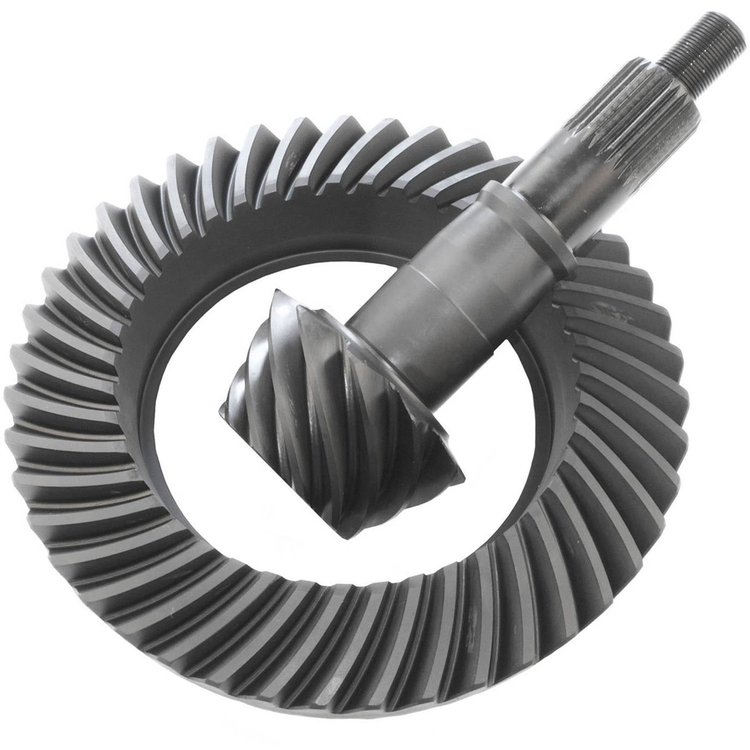

Ring & Pinion Gears Rear

Name: Ring & Pinion Gears Rear
Brand: MOTIVE GEAR
SKU: 683-F888430
Price: 387.99 USD
Availability: InStock

^$387⁹⁹

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

Ford 8.8"

Rear
Ratio: 4.30
Teeth: 43-10

Specifications:
Ring Gear Diameter: 8.80"
10-7/16" x 20 Right Hand Threaded Bolts
Pinion Diameter: 1.626" 30-Splines
No Case Breaks
8620 Material - Heat Treated
Applications:
1990-97 Aerostar w/4.0L
1983-96 Bronco
1986 Capri V8
1980-97 Cougar
1983-99 E150-E250
1997-On Expedition
1991-On Explorer
1981-90 F100
1981-02 F150-250
1997-02 F150 (F)
1997-On Ford 1/2 Ton (F)
1997-02 Ford 1/2 Ton (R)
1983-On Ford 3/4 Ton (R)
1980-On Full Size Car
1986-On Mustang V8
1983-On Ranger W/4.0L
1987-97 Thunderbird

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.5

Package Width11.2

Package Length15.1

Weight18.3 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth10

Ring Gear Tooth Quantity43

QuantitySold as a set

Cover Bolt Quantity10

Pinion Spline Count30

Ring Gear Material8620 Steel

Ring Gear Diameter8.8 in (223.5 mm)

Ring And Pinion Ratio4.30:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity10

Axle TypeFord 8.8 in.

Ring Gear Bolts10

Cover Bolts10

Ring Gear Teeth43

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberF888430

Package Qty1

Package TypeEA
