MOTIVE GEARPART NUMBER: 683-F890325

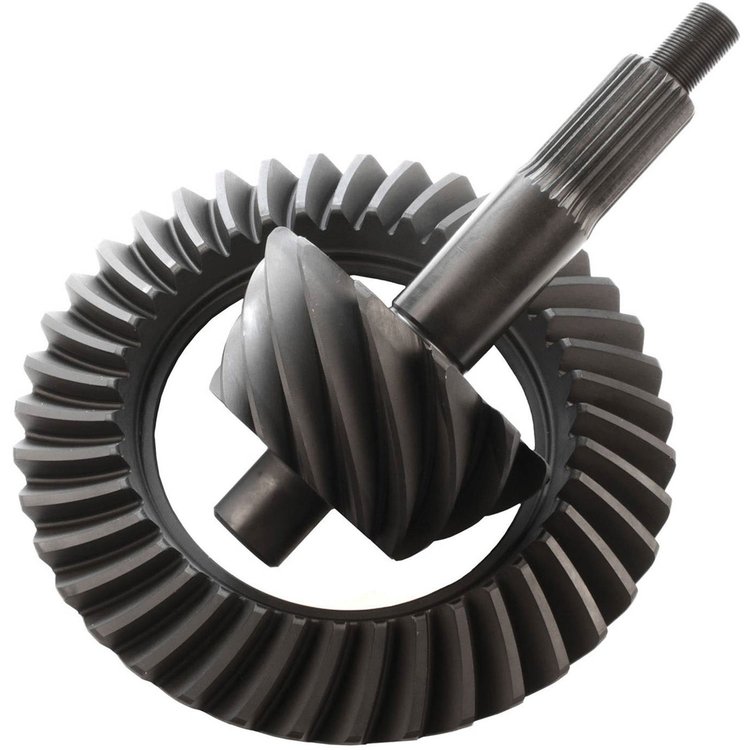

Ring & Pinion Gears Ratio: 3.25

Name: Ring & Pinion Gears Ratio: 3.25
Brand: MOTIVE GEAR
SKU: 683-F890325
Price: 336.37 USD
Availability: InStock

^$336³⁷

5 left in stock

Ships Tomorrow

Lowest Price Guarantee

Ford 9" Performance

Ratio: 3.25
Teeth: 39-12

Specifications:
10 Bolt 3rd Member
Ring Gear Diameter: 9"
10-7/16" x 20 Right Hand Threaded Bolts
Pinion Diameter: 1.313" 28-Splines
No Case Breaks
8620 Material - Heat Treated
Applications:
1969-74 Australian Falcon GT, XW, XY, XA, XB
1969-74 Australian Fairlane ZC, ZD
1967-5/70 Bronco (28 Spl)
5/1970-86 Bronco (31 Spl)
1965-67 Comet/Cyclone
1967-5/70 Cougar (28 Spl)
5/1970-79 Cougar (31 Spl)
1986-87 E100/150
1968-74 E200
1964-86 F100/150
1957-5/70 Fairlane (28 Spl)
5/1970-71 Fairlane (31 Spl)
1957-5/70 Ford Full Size (28 Spl)
5/1970-79 Ford Full Size (31 Spl)
1957-5/70 Ford 1/2 Ton (28 Spl)
5/1970-86 Ford 1/2 Ton (31 Spl)
1969-5/70 Ford 3/4 Ton (28 Spl)
5/1970-74 Ford 3/4 Ton (31 Spl)
1975-80 Granada
1971-79 LTD II
1957-5/70 Mercury (28 Spl)
5/1970-79 Mercury (31 Spl)
5/1970-76 Montego (28 Spl)
5/1970-76 Montego (31 Spl)
1975-80 Monarch
1965-5/70 Mustang (28 Spl)
5/1970-73 Mustang (31 Spl)
1957-5/70 Thunderbird (28 Spl)
5/1970-79 Thunderbird (31 Spl)
1977-80 Versailles

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.3

Package Width11.2

Package Length15.2

Weight19.05 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth12

Ring Gear Tooth Quantity26

QuantitySold as a set

Cover Bolt QuantityDropout

Pinion Spline Count28

Ring Gear Material8620 Steel

Ring Gear Diameter9 in (228.6 mm)

Ring And Pinion Ratio3.25:1

Pinion Shaft Diameter1.313 in (33.4 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity8

Axle TypeFord 9 in.

Ring Gear Bolts10

Ring Gear Teeth39

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberF890325

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
