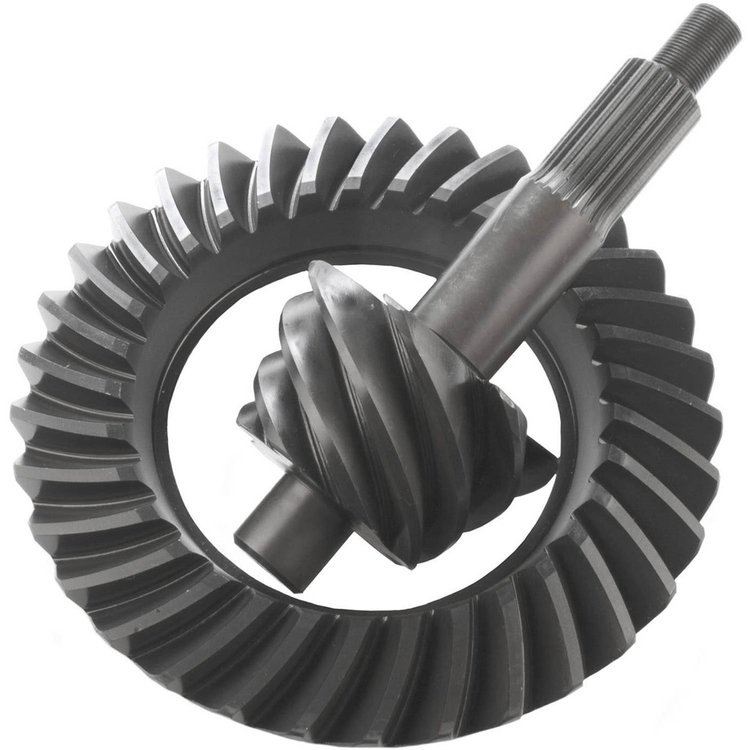

Ring & Pinion Gears Ratio: 4.71

Name: Ring & Pinion Gears Ratio: 4.71
Brand: MOTIVE GEAR
SKU: 683-F890471
Price: 316.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 9" Performance

Ratio: 4.71
Teeth: 33-7

Specifications:
10 Bolt 3rd Member
Ring Gear Diameter: 9"
10-7/16" x 20 Right Hand Threaded Bolts
Pinion Diameter: 1.313" 28-Splines
No Case Breaks
8620 Material - Heat Treated
Applications:
1969-74 Australian Falcon GT, XW, XY, XA, XB
1969-74 Australian Fairlane ZC, ZD
1967-5/70 Bronco (28 Spl)
5/1970-86 Bronco (31 Spl)
1965-67 Comet/Cyclone
1967-5/70 Cougar (28 Spl)
5/1970-79 Cougar (31 Spl)
1986-87 E100/150
1968-74 E200
1964-86 F100/150
1957-5/70 Fairlane (28 Spl)
5/1970-71 Fairlane (31 Spl)
1957-5/70 Ford Full Size (28 Spl)
5/1970-79 Ford Full Size (31 Spl)
1957-5/70 Ford 1/2 Ton (28 Spl)
5/1970-86 Ford 1/2 Ton (31 Spl)
1969-5/70 Ford 3/4 Ton (28 Spl)
5/1970-74 Ford 3/4 Ton (31 Spl)
1975-80 Granada
1971-79 LTD II
1957-5/70 Mercury (28 Spl)
5/1970-79 Mercury (31 Spl)
5/1970-76 Montego (28 Spl)
5/1970-76 Montego (31 Spl)
1975-80 Monarch
1965-5/70 Mustang (28 Spl)
5/1970-73 Mustang (31 Spl)
1957-5/70 Thunderbird (28 Spl)
5/1970-79 Thunderbird (31 Spl)
1977-80 Versailles

OEM-Quality Ring and Pinions

Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.

Part TypeRing and Pinion

Product LineMotive Gear Ring & Pinion Gears

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight19.46 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberF890471

Package Qty1

Package TypeEA
