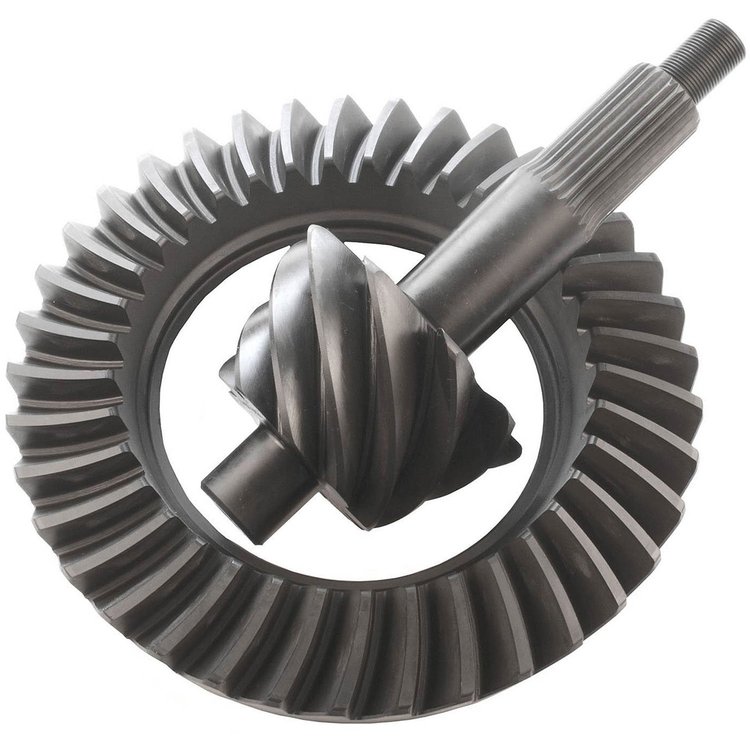

Ring & Pinion Gears Front

Name: Ring & Pinion Gears Front
Brand: MOTIVE GEAR
SKU: 683-F9-411
Price: 271.82 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 9" Street

Front
Ratio: 4.11
Teeth: 37-9

Specifications:
Ring Gear Diameter: 9"
10-7/16" x 20 Right Hand Threaded Bolts
Pinion Diameter: 1.313" 28-Splines
No Case Breaks
8620 Material - Heat Treated
Applications:
1969-74 Australian Falcon GT, XW, XY, XA, XB
1969-74 Australian Fairlane ZC, ZD
1967-5/70 Bronco (28 Spl)
5/1970-86 Bronco (31 Spl)
1965-67 Comet/Cyclone
1967-5/70 Cougar (28 Spl)
5/1970-79 Cougar (31 Spl)
1986-87 E100/150
1968-74 E200
1964-86 F100/150
1957-5/70 Fairlane (28 Spl)
5/1970-71 Fairlane (31 Spl)
1957-5/70 Ford Full Size (28 Spl)
5/1970-79 Ford Full Size (31 Spl)
1957-5/70 Ford 1/2 Ton (28 Spl)
5/1970-86 Ford 1/2 Ton (31 Spl)
1969-5/70 Ford 3/4 Ton (28 Spl)
5/1970-74 Ford 3/4 Ton (31 Spl)
1975-80 Granada
1971-79 LTD II
1957-5/70 Mercury (28 Spl)
5/1970-79 Mercury (31 Spl)
5/1970-76 Montego (28 Spl)
5/1970-76 Montego (31 Spl)
1975-80 Monarch
1965-5/70 Mustang (28 Spl)
5/1970-73 Mustang (31 Spl)
1957-5/70 Thunderbird (28 Spl)
5/1970-79 Thunderbird (31 Spl)
1977-80 Versailles

OEM-Quality Ring and Pinions

Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.

Part TypeRing and Pinion

Product LineMotive Gear Ring & Pinion Gears

BrandMOTIVE GEAR

Package Height5.3

Package Width11.3

Package Length15.2

Weight18.79 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter9 in (228.6 mm)

Ring Gear Tooth Quantity37
