Product Discontinued

MOTIVE GEARPART NUMBER: 683-F9-486

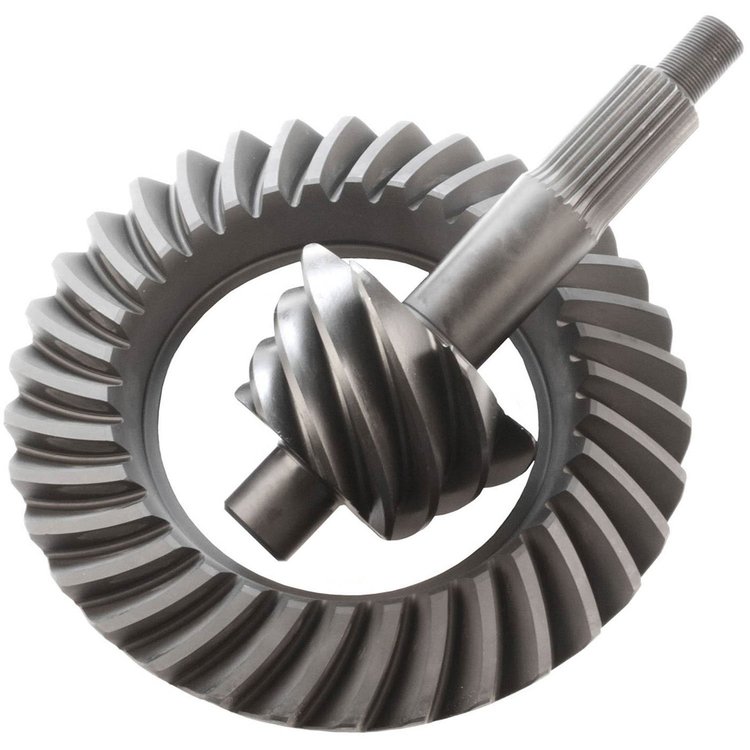

Ring & Pinion Gears Front

Name: Ring & Pinion Gears Front
Brand: MOTIVE GEAR
SKU: 683-F9-486
Price: 271.69 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 9" Street

Front
Ratio: 4.86
Teeth: 34-7

Specifications:
Ring Gear Diameter: 9"
10-7/16" x 20 Right Hand Threaded Bolts
Pinion Diameter: 1.313" 28-Splines
No Case Breaks
8620 Material - Heat Treated
Applications:
1969-74 Australian Falcon GT, XW, XY, XA, XB
1969-74 Australian Fairlane ZC, ZD
1967-5/70 Bronco (28 Spl)
5/1970-86 Bronco (31 Spl)
1965-67 Comet/Cyclone
1967-5/70 Cougar (28 Spl)
5/1970-79 Cougar (31 Spl)
1986-87 E100/150
1968-74 E200
1964-86 F100/150
1957-5/70 Fairlane (28 Spl)
5/1970-71 Fairlane (31 Spl)
1957-5/70 Ford Full Size (28 Spl)
5/1970-79 Ford Full Size (31 Spl)
1957-5/70 Ford 1/2 Ton (28 Spl)
5/1970-86 Ford 1/2 Ton (31 Spl)
1969-5/70 Ford 3/4 Ton (28 Spl)
5/1970-74 Ford 3/4 Ton (31 Spl)
1975-80 Granada
1971-79 LTD II
1957-5/70 Mercury (28 Spl)
5/1970-79 Mercury (31 Spl)
5/1970-76 Montego (28 Spl)
5/1970-76 Montego (31 Spl)
1975-80 Monarch
1965-5/70 Mustang (28 Spl)
5/1970-73 Mustang (31 Spl)
1957-5/70 Thunderbird (28 Spl)
5/1970-79 Thunderbird (31 Spl)
1977-80 Versailles

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.25

Package Width11.0

Package Length15.5

Weight19.56 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Material8620 Steel

Ring Gear Diameter9 in (228.6 mm)

Ring Gear Tooth Quantity34

Pinion Shaft Diameter1.313 in (33.4 mm)

Pinion Gear Tooth Quantity7

Axle TypeFord 9 in.

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Cover Bolt QuantityDropout

Pinion Spline Count28

Vendor Part NumberF9-486

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
