Vehicle Info Needed

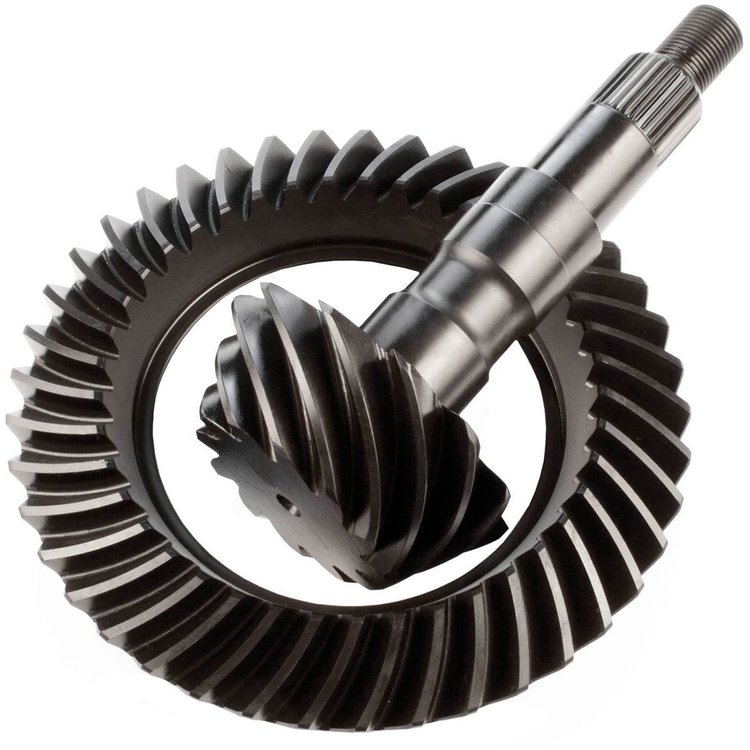

MOTIVE GEARPART NUMBER: 683-G885373

Ring & Pinion Gears Ratio: 3.73

Name: Ring & Pinion Gears Ratio: 3.73
Brand: MOTIVE GEAR
SKU: 683-G885373
Price: 465.99 USD
Availability: InStock

^$465⁹⁹

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

GM 8.5" 10-Bolt Front/Rear & 8.6" 10-Bolt Rear

Ratio: 3.73
Teeth: 41-11
8620 Material
Heat Treated

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.5

Package Width11.1

Package Length15.0

Weight18.06 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth11

Ring Gear Tooth Quantity41

Carrier Series3

QuantitySold as a set

Differential Carrier Break2.73 and Higher

Cover Bolt Quantity10

Pinion Spline Count30

Ring Gear Material8620 Steel

Ring Gear Diameter8.5 in (215.9 mm)

Ring And Pinion Ratio3.73:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity11

Axle TypeGM 8.5 in.

Ring Gear Bolts10

Cover Bolts10

Ring Gear Teeth41

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part NumberG885373

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
