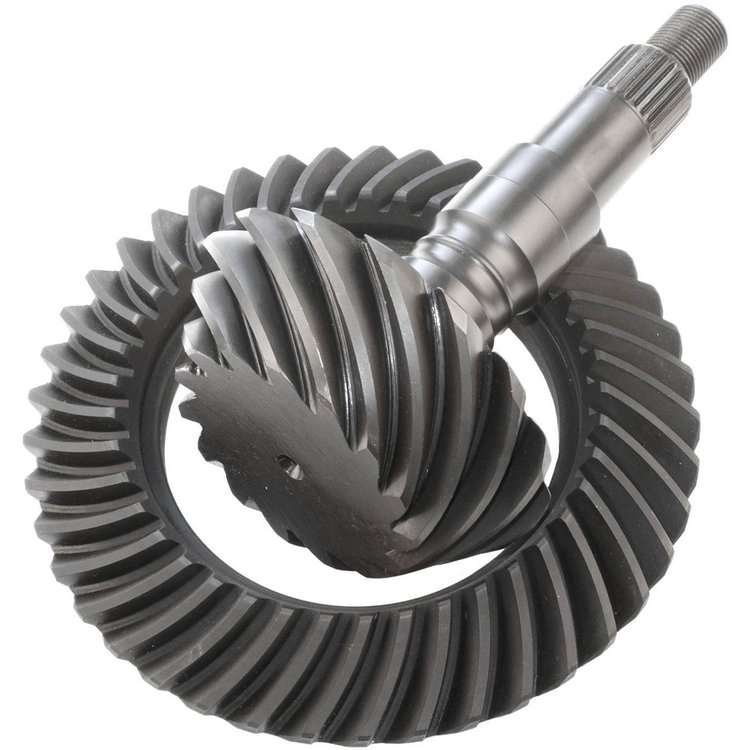

Vehicle Info NeededMOTIVE GEARPART NUMBER: 683-GM10-308
Ring & Pinion Gears Ratio: 3.08
$24419
Ships on 09/14/2026
Lowest Price GuaranteeGM 8.5" 10-Bolt Front/Rear & 8.6" 10-Bolt Rear
- Ring & Pinion Gears
- Ratio: 3.08
- Teeth: 40-13
- OEM #: 26037732
- 8620 Material
- Heat Treated
OEM-Quality Ring and Pinions
Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.
Part TypeRing and Pinion
Product LineMotive Gear Ring & Pinion Gears
BrandMOTIVE GEAR
Package Height5.8
Package Width11.3
Package Length15.4
Weight16.65 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Ring Gear Tooth Quantity40
Differential Carrier Break2.73 and Higher
Cover Bolt Quantity10
Pinion Spline Count30
Ring Gear Material8620 Steel
Ring Gear Diameter8.5 in (215.9 mm)
Pinion Shaft Diameter1.626 in (41.3 mm)
Pinion Gear Tooth Quantity13
Axle TypeGM 8.5 in.
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part NumberGM10-308
Package Qty1
Package TypeEA
No Questions
No Reviews
