Vehicle Info Needed

MOTIVE GEARPART NUMBER: 683-GM10.5-456

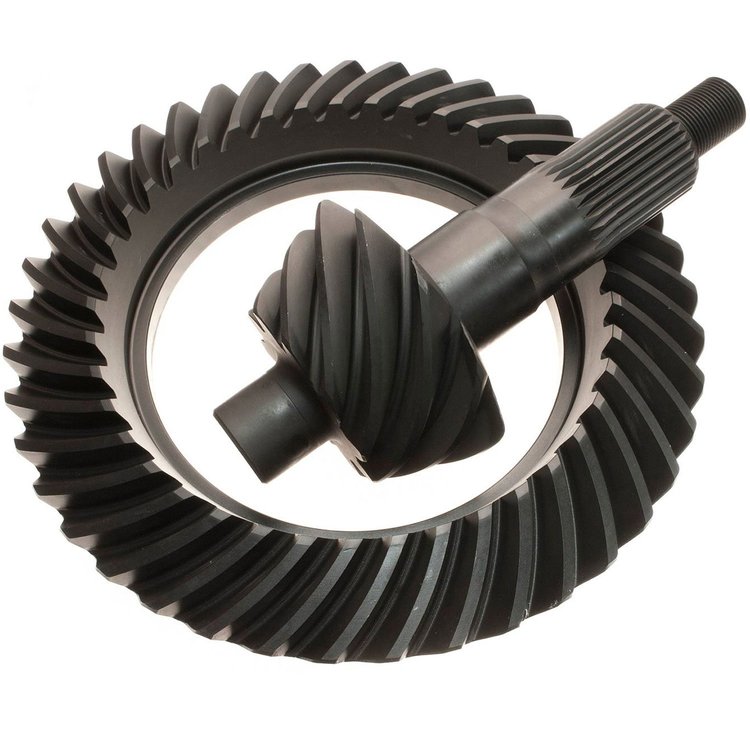

Ring & Pinion Gears Ratio: 4.56

Name: Ring & Pinion Gears Ratio: 4.56
Brand: MOTIVE GEAR
SKU: 683-GM10.5-456
Price: 425.69 USD
Availability: InStock

^$425⁶⁹

Ships on 09/15/2026

Lowest Price Guarantee

GM 10.5" 14-Bolt

Ratio: 4.56
Teeth: 41-9
Ring Gear Diameter: GM 10.5" truck
Pinion Shaft Diameter: 1.750"
Cover Bolts: 14
Ring Gear Bolts: 14
Pinion Spline Count: 30

Part TypeRing and Pinion

BrandMOTIVE GEAR

Package Height5.3

Package Width11.2

Package Length15.1

Weight20.9 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Ring Gear Tooth Quantity41

Differential Carrier Break4.56 and Higher

Cover Bolt Quantity14

Pinion Spline Count30

Ring Gear Material8620 Steel

Ring Gear Diameter10.5 in (266.7 mm)

Pinion Shaft Diameter1.75 in (44.5 mm)

Pinion Gear Tooth Quantity9

Axle TypeGM 10.5 in.

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Vendor Part NumberGM10.5-456

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
