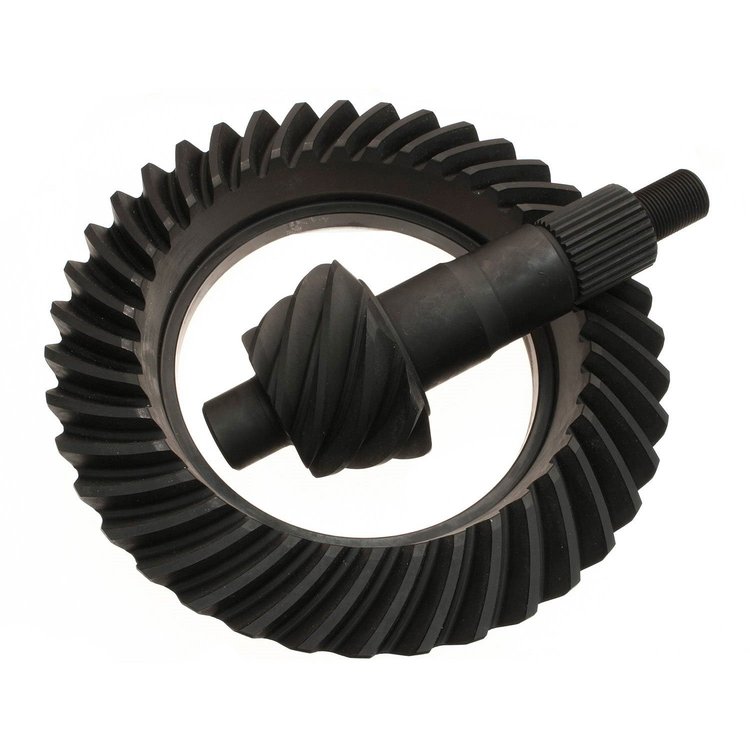

Ring & Pinion Gears Ratio: 5.13
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-GM10.5-513X

Ring & Pinion Gears Ratio: 5.13

$38699
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM 10.5" 14-Bolt
Ring & Pinion Gears
  • Ratio: 5.13
  • Teeth: 41-8

    • Ring Gear Diameter: GM 10.5" truck
    • Pinion Shaft Diameter: 1.750"
    • Cover Bolts: 14
    • Ring Gear Bolts: 12
    • Pinion Spline Count: 30
    • Ring Gear Rotation: Standard

      Note: Fits 4.10 & down case.

      • OEM-Quality Ring and Pinions

      Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.

    Part TypeRing and Pinion
    Product LineMotive Gear Ring & Pinion Gears
    BrandMOTIVE GEAR
    Package Height5.25
    Package Width11.0
    Package Length15.5
    Weight25.83 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Ring Gear Tooth Quantity41
    Differential Carrier Break4.56 and Higher
    Cover Bolt Quantity14
    Pinion Spline Count30
    Ring Gear Material8620 Steel
    Ring Gear Diameter10.5 in (266.7 mm)
    Pinion Shaft Diameter1.75 in (44.5 mm)
    Pinion Gear Tooth Quantity8
    Axle TypeFord 10.5 in.
    Ring Gear Bolt Quantity12
    Part FitmentSemi Universal
    Vendor Part NumberGM10.5-513X
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
