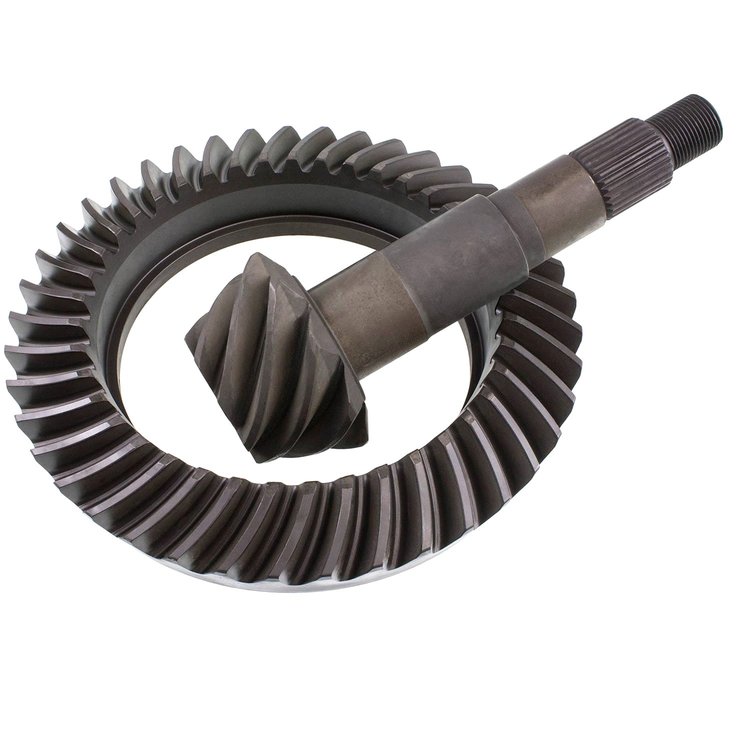

Ring & Pinion Gears Ratio: 4.56
InfoVehicle Info Needed
MOTIVE GEARPART NUMBER: 683-GM11.5-456

Ring & Pinion Gears Ratio: 4.56

$38098
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM / Chrysler 11.5 in.
Ring & Pinion Gears
  • Ratio: 4.56
  • Teeth: 41-9

    • Ring Gear Diameter: GM/Chrysler 11.5 in.
    • Pinion Shaft Diameter: 2.005 in.
    • Cover Bolts: 14
    • Ring Gear Bolts: 12
    • Pinion Spline Count: 30
    • Ring Gear Rotation: Standard

    Cross References:

    • American Axle & Manufacturing 40005988
    • Dorman 697-129
    • G2 Axle and Gear 2-2024-456
    • SVL 2020654
    • USA Standard Gear 36162
    • USA Standard Gear ZG GM11.5-456
    • USA Standard Gear ZGGM11.5-456
    • Yukon Gear 24443
    • Yukon Gear YG GM11.5-456
    • Yukon Gear YGGM11.5-456

      • OEM-Quality Ring and Pinions

      Motive Gear Ring & Pinion Gears are the differential's critical point of power transfer and one of the easiest performance modifications to complete on a vehicle. Motive's high-quality Ring & Pinion Gears are made from 8620 steel for superior strength and come in a range of ratios, making them excellent factory replacements for both on-street and off-road vehicles.

    Part TypeRing and Pinion
    Product LineMotive Gear Ring & Pinion Gears
    BrandMOTIVE GEAR
    Package Height5.25
    Package Width11.0
    Package Length15.5
    Weight33.25 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Ring Gear Material8620 Steel
    Ring Gear Diameter11.5 in (292.1 mm)
    Ring Gear Tooth Quantity41
    Pinion Shaft Diameter2.005 in (50.9 mm)
    Pinion Gear Tooth Quantity9
    Axle TypeGM 11.5 in.
    Ring Gear Bolt Quantity12
    Part FitmentSemi Universal
    Cover Bolt Quantity14
    Pinion Spline Count30
    Vendor Part NumberGM11.5-456
    Package Qty1
    Package TypeEA
